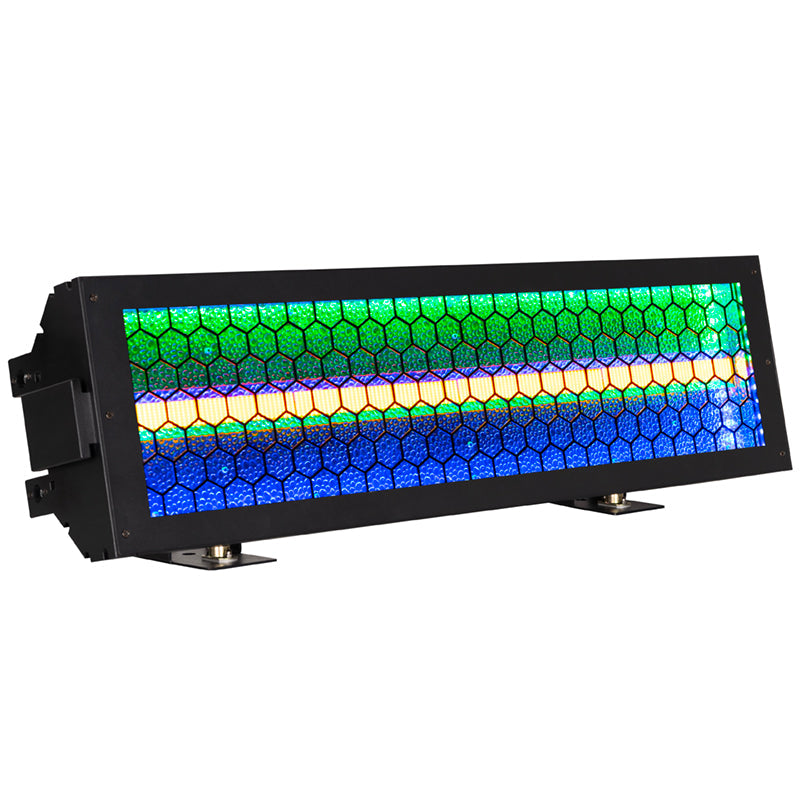

Vintage Bar
ADJ
#392Short Name: Vintage Bar
“Unique retro-modern blinder and eye-candy bar combining four 150W warm amber COB LEDs (>27,000 lumens, 2000K, 160° field angle) with 120 SMD 5050 RGBL background LEDs across 20 pixel groups, Aria X2 wireless control, and Kling-Net / Art-Net / sACN support.”
Physical
Weight19 kg
Length908 mm
Width392 mm
Height269 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.780 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR 5-pin, RJ45
Optical & Wheels
SourceBlinder / Bar
Emitters4x 150W Warm Amber (2000K) COB LEDs + 120x 0.8W SMD RGBL LEDs
Lumens27,000 lm
CRI70
Zoom Min160°
Zoom Max160°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
5 Channel5 ch
6 Channel6 ch
8 Channel8 ch
14 Channel14 ch
17 Channel17 ch
18 Channel18 ch
84 Channel84 ch
88 Channel88 ch
90 Channel90 ch
97 Channel97 ch
