UBL12H
ADJ
#383Short Name: UBL12H

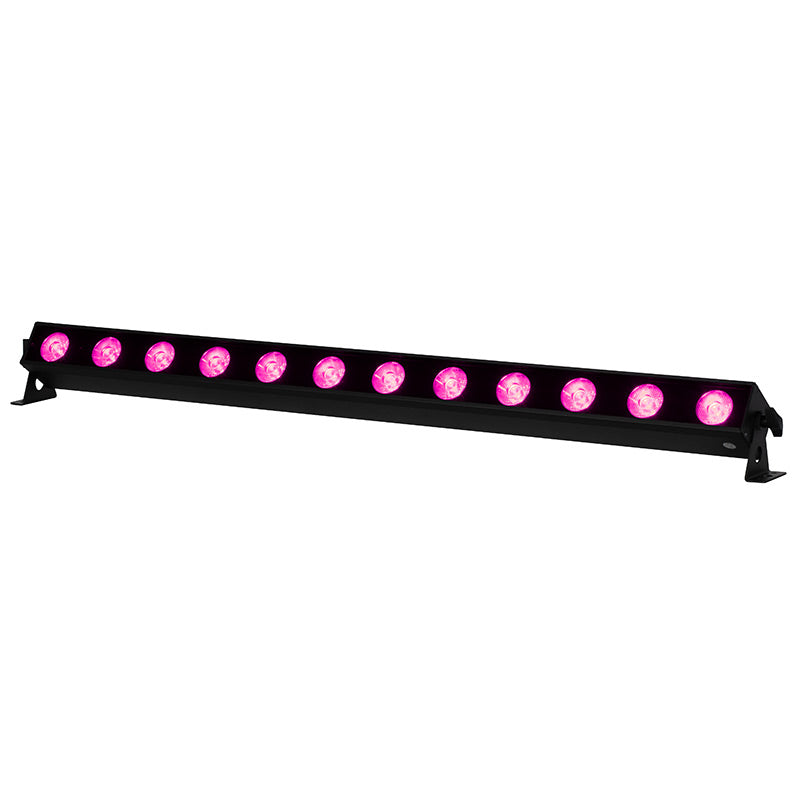

“1-meter professional linear LED wash batten powered by twelve 20W lime-infused HEX (RGBAL+UV) LEDs delivering high CRI >90, tunable white CCT (2300K-9900K), 17° native beam, and magnetic alignment.”
Physical
Weight3.3 kg
Length1082 mm
Width75 mm
Height107 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.50 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR 5-pin
Optical & Wheels
SourceBar / Batten
Emitters12x 20W HEX (RGBAL+UV: 6-in-1) LEDs
Lumens---
CRI90
Zoom Min17°
Zoom Max17°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
6 Channel6 ch
11 Channel11 ch
13 Channel13 ch
16 Channel16 ch
19 Channel19 ch
28 Channel28 ch
36 Channel36 ch
40 Channel40 ch
43 Channel43 ch
46 Channel46 ch
