Protege XS
ADJ
#373Short Name: Protege XS

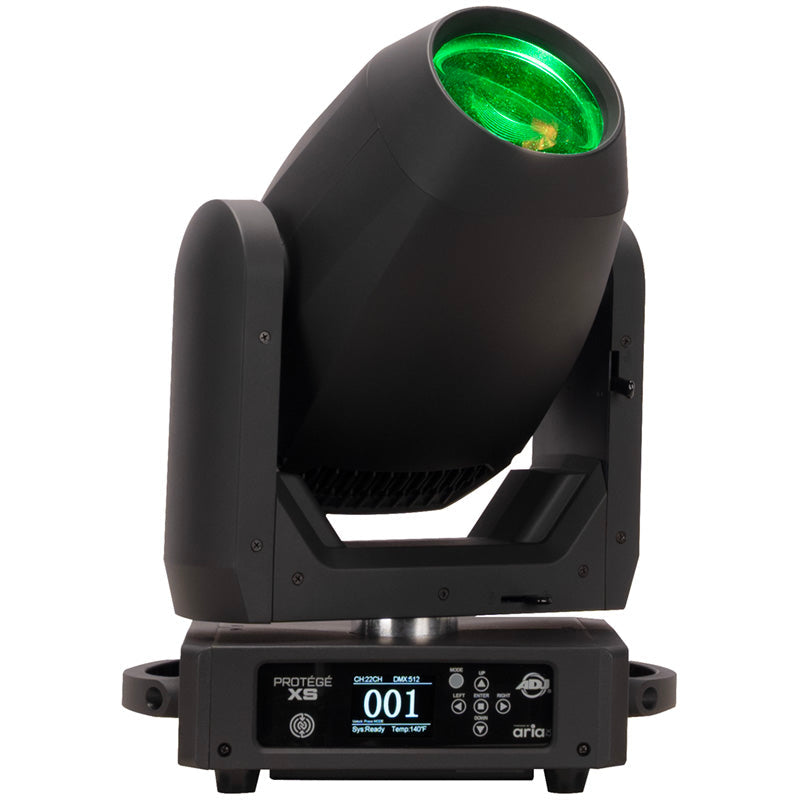

“Compact and versatile 250W white LED beam/spot/wash moving head luminaire delivering 9,800 lumens, motorized zoom (4.8° to 38°), two 8-position color wheels, rotating and static gobo wheels, dual prisms, frost filter, and animation wheel with Aria X2 wireless control.”
Physical
Weight17.85 kg
Length364 mm
Width248 mm
Height509 mm
IP RatingIP20
Temp Low-25°C
Temp High45°C
Electrical
Power Consump.616 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR 5-pin
Optical & Wheels
SourceSpot / Beam / Wash
Emitters1x 250W White (8500K) LED Engine
Lumens9,800 lm
CRI73
Zoom Min4.8°
Zoom Max38°
Color Wheels2 [Wheel 1: 8 Colors, Wheel 2: 8 Colors (Includes CTO 3200K, CTB 9000K)]
Gobo Wheels2 [Wheel 1: 7 Rotating Glass Gobos + Open, Wheel 2: 11 Static Metal Gobos + Open]
Movement
Pan Range630°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic22 ch
Standard27 ch
Extended31 ch
