Protege XM
ADJ
#372Short Name: Protege XM

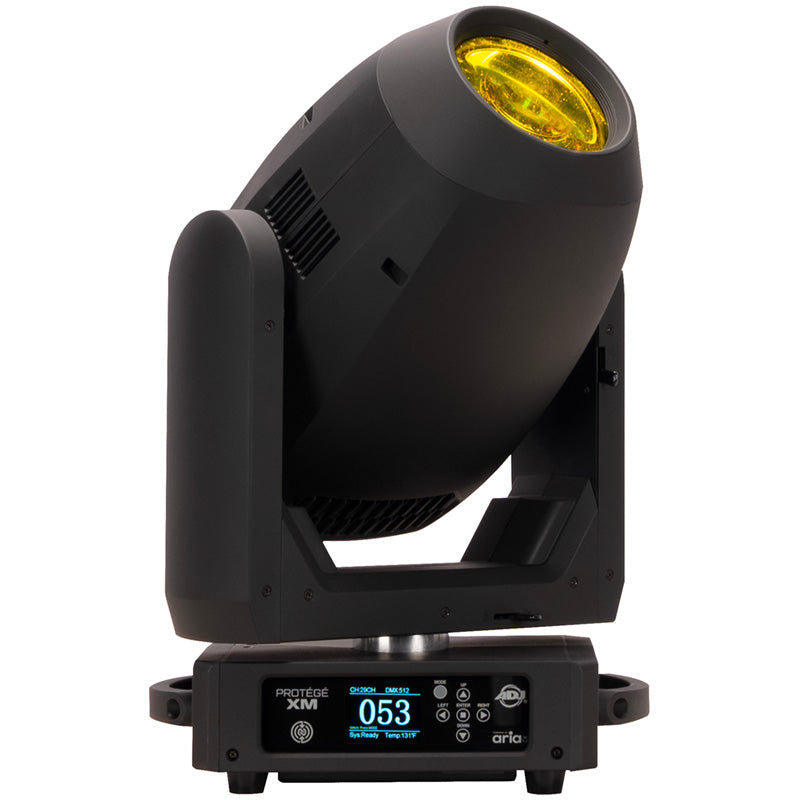

“Professional 350W white LED spot moving head luminaire delivering 16,000 lumens, disc-based CMY color mixing, 2 color wheels, dual rotating gobo wheels, motorized zoom (3.7° to 43°), and animation wheel.”
Physical
Weight22 kg
Length368 mm
Width248 mm
Height566 mm
IP RatingIP20
Temp Low-25°C
Temp High45°C
Electrical
Power Consump.675 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR 5-pin, RJ45
Optical & Wheels
SourceSpot
Emitters1x 350W White (8000K) LED Engine
Lumens16,000 lm
CRI70
Zoom Min3.7°
Zoom Max43°
Color Wheels2 [Wheel 1: 9 Dichroic Colors, Wheel 2: 9 Dichroic Colors (Includes CTO 2700K, CTC, High CRI)]
Gobo Wheels2 [Wheel 1: 7 Rotating Glass, Wheel 2: 7 Rotating Glass]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic29 ch
Standard31 ch
Extended31 ch
