MDF2
ADJ
#366Short Name: MDF2

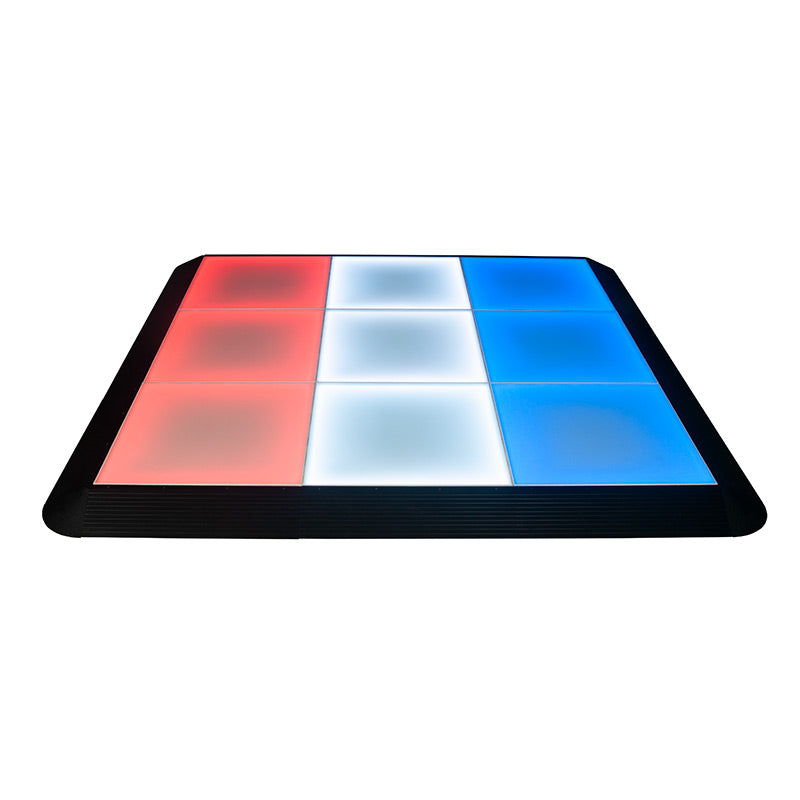

“Magnetic modular LED dance floor panel (600x600mm) featuring RGB 3-in-1 LEDs under an opaque tempered glass surface supporting loads up to 300 kg/m².”
Physical
Weight12.05 kg
Length600 mm
Width600 mm
Height70 mm
IP RatingIP20
Temp Low0°C
Temp High45°C
Electrical
Power Consump.15 W
Voltage24V - 24V
Frequency50Hz - 60Hz
ConnectorMagnetic Contact, XLR 3-pin
Optical & Wheels
SourceDance Floor / Effect
EmittersRGB 3-in-1 LEDs
Lumens---
CRI---
Zoom Min160°
Zoom Max160°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
3 Channel3 ch
5 Channel5 ch
7 Channel7 ch
10 Channel10 ch
