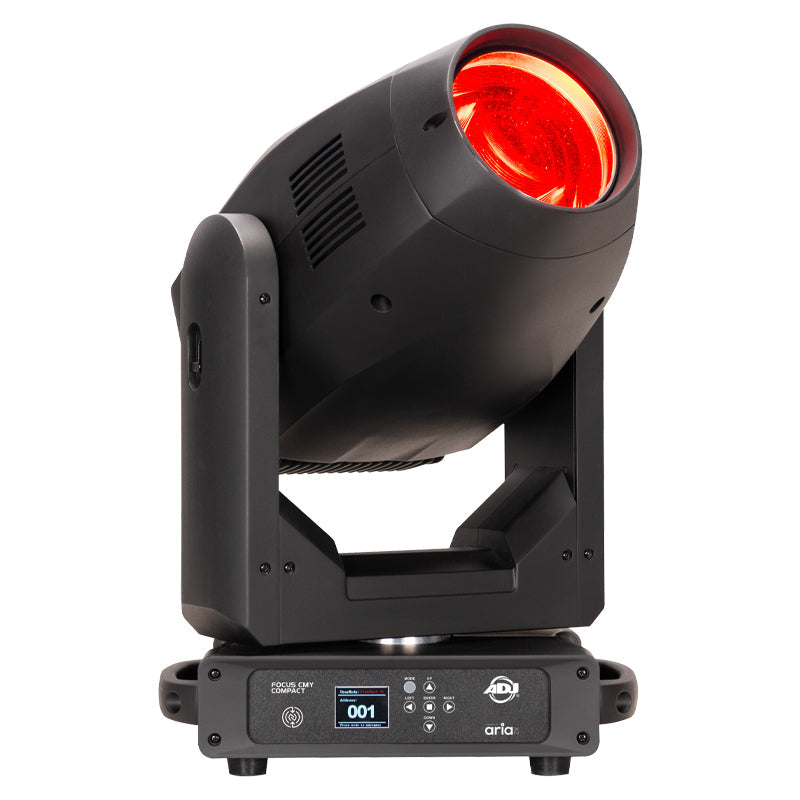

Focus CMY Compact
ADJ
#330Short Name: Focus CMY Compact
“Professional 400W LED spot moving head featuring physical subtractive CMY color mixing, linear CTO, dual gobo wheels, dual prisms, and 3° to 52° zoom.”
Physical
Weight20.2 kg
Length360 mm
Width234 mm
Height597 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C
Electrical
Power Consump.450 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR 5-pin, XLR 3-pin, RJ45
Optical & Wheels
SourceSpot
Emitters1x 400W Cool White (6900K) LED Engine
Lumens14,500 lm
CRI73
Zoom Min3°
Zoom Max52°
Color Wheels1 [7 Dichroic Colors + Open (Includes High CRI)]
Gobo Wheels2 [Wheel 1: 8 Rotating Glass, Wheel 2: 10 Static Glass]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard32 ch
Extended40 ch
