Encore DBX
ADJ
#309Short Name: Encore DBX

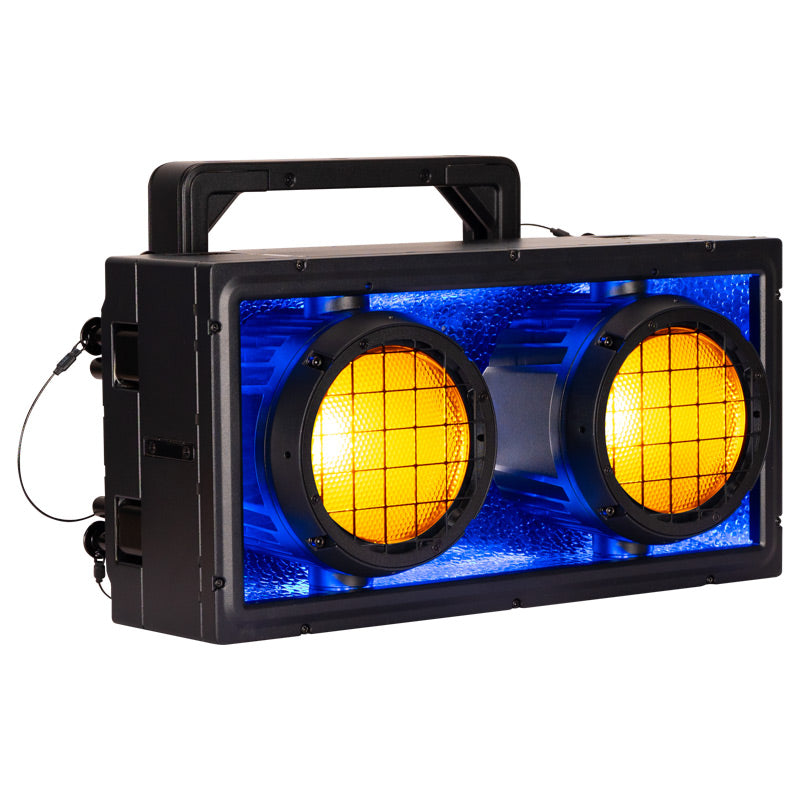

“IP65-rated dual-cell blinder/strobe luminaire featuring two 150W RGBAW LEDs and 160 RGB background LEDs for backlight eye-candy effects.”
Physical
Weight11.85 kg
Length420 mm
Width261 mm
Height231 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.347 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR 5-pin
Optical & Wheels
SourceBlinder
Emitters2x 150W RGBAW LEDs + 160x 0.5W RGB Background LEDs
Lumens---
CRI---
Zoom Min---
Zoom Max---
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
13 Channel13 ch
16 Channel16 ch
4 Channel4 ch
7 Channel7 ch
8 Channel8 ch
60 Channel60 ch
63 Channel63 ch
69 Channel69 ch
72 Channel72 ch
120 Channel120 ch
