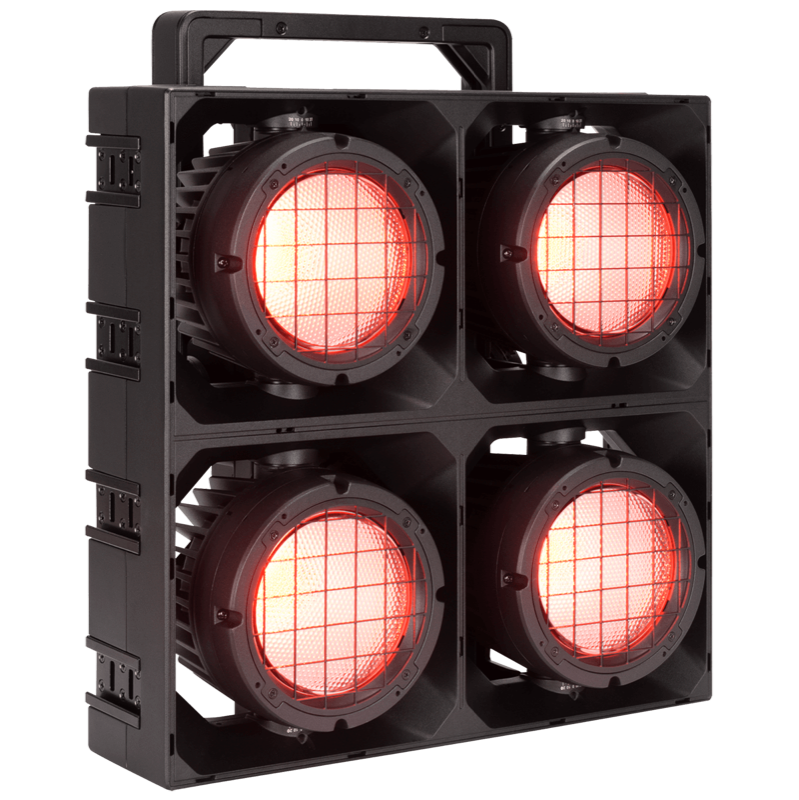

SOL IV Blinder
Elation
#2854Short Name: SOLBnd4
“Introducing the S?L IV BLINDER, the most versatile addition to the S?L Series yet, featuring a grid of four fixtures in a single modular housing. Like the S?L I and S?L II, the S?L IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.”
Physical
Weight17.7 kg
Length240 mm
Width420 mm
Height471 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.1300 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR
Optical & Wheels
SourceBlinder
EmittersRed | Green | Blue | Lime | Amber | White
Lumens59,830 lm
CRI93
Zoom Min---
Zoom Max---
Color Wheels2 [61 | 73]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Dimmer 1CH1 ch
Dimmer & CCT 2CH2 ch
4-Cell Dimmer 2CH2 ch
Dimmer/Strobe/CCT 3CH3 ch
4-Cell Dimmer/CCT 4CH4 ch
4-Cell IRGB 4CH4 ch
4-Cell Dim/Strobe 6CH6 ch
4-Cell Dim/CCT/Color 7CH7 ch
4-Cell Master 10CH10 ch
4-Cell Basic 16CH16 ch
4-Cell Extended 24CH24 ch
4-Cell Extended Plus 28CH28 ch
Pixel 40CH40 ch
Extended Pixel 45CH45 ch
Full Control 69CH69 ch
