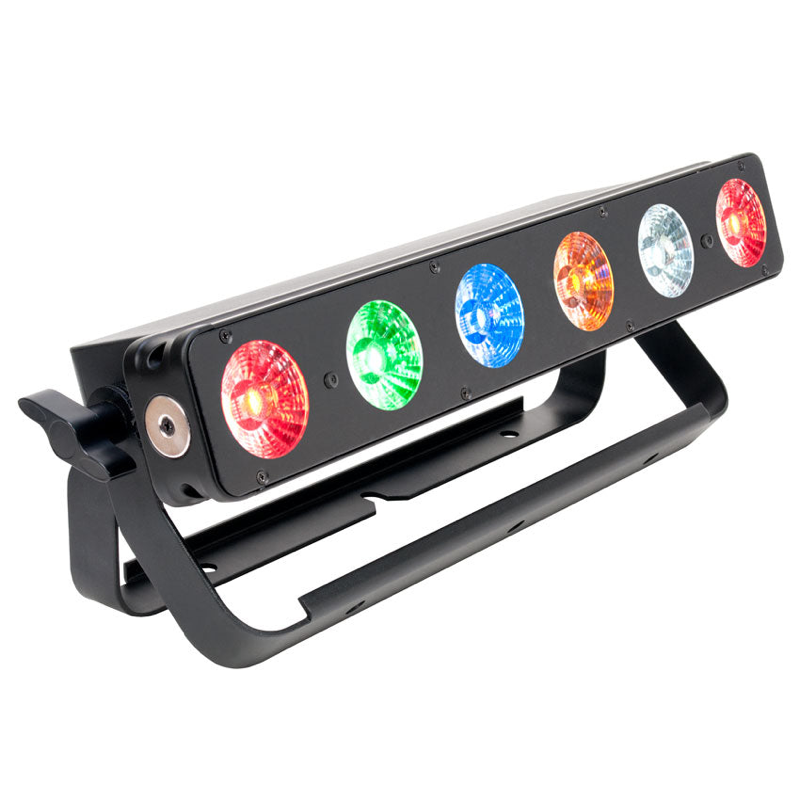

SIXBAR 500

SIXBAR 500

Elation

#2837
Short Name: SIXBR500

“The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).”

Physical

Weight4.1 kg
Length450 mm
Width206 mm
Height143 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.93 W
Voltage110V - 240V
Frequency50Hz - 60Hz
ConnectorLocking Power | 3/5pin XLR | RJ45

Optical & Wheels

SourceBar / Batten
EmittersRed | Green | Blue | White | Amber | UV
Lumens2,200 lm
CRI80
Zoom Min---
Zoom Max---
Color Wheels1 [64]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

6 Channel6 ch
7 Channel7 ch
11 Channel11 ch
13 Channel13 ch
18 Channel18 ch
36 Channel36 ch
39 Channel39 ch
43 Channel43 ch
