SIXBAR 1000 IP

SIXBAR 1000 IP

Elation

#2836
Short Name: SIXBR1000IP

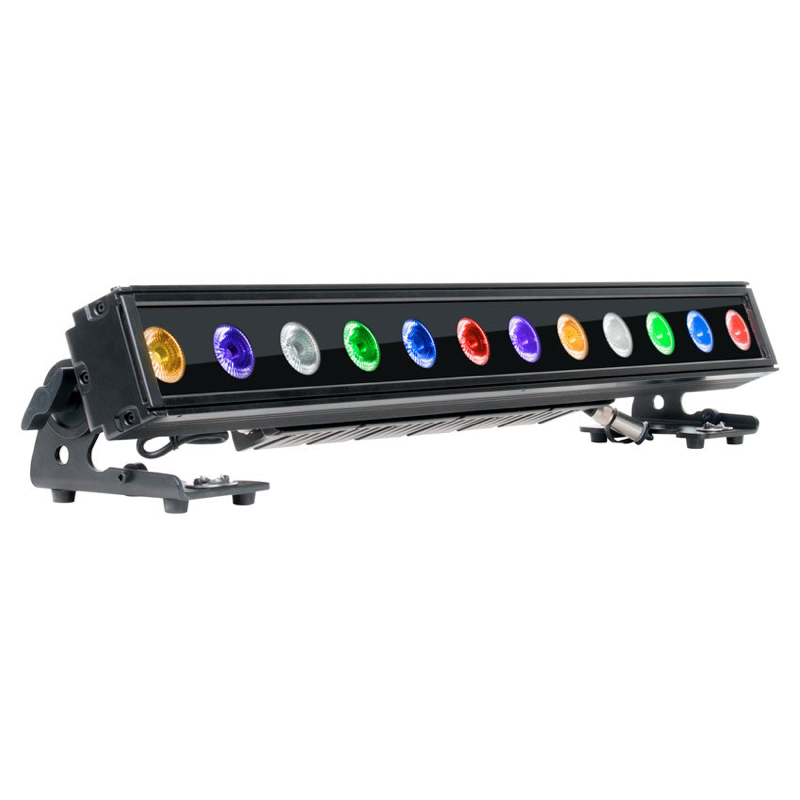

“The IP65 rated SIXBAR 1000 IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).”

Physical

Weight8.6 kg
Length853 mm
Width141 mm
Height121 mm
IP RatingIP65
Temp Low0°C
Temp High40°C

Electrical

Power Consump.145 W
Voltage110V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR

Optical & Wheels

SourceBar / Batten
EmittersRed | Green | Blue | White | Amber | UV
Lumens4,500 lm
CRI80
Zoom Min---
Zoom Max---
Color Wheels1 [64]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

6 Channel6 ch
7 Channel7 ch
11 Channel11 ch
13 Channel13 ch
36 Channel36 ch
72 Channel72 ch
75 Channel75 ch
79 Channel79 ch
