Seven Batten 72

Seven Batten 72

Elation

#2830
Short Name: SEVBAT72

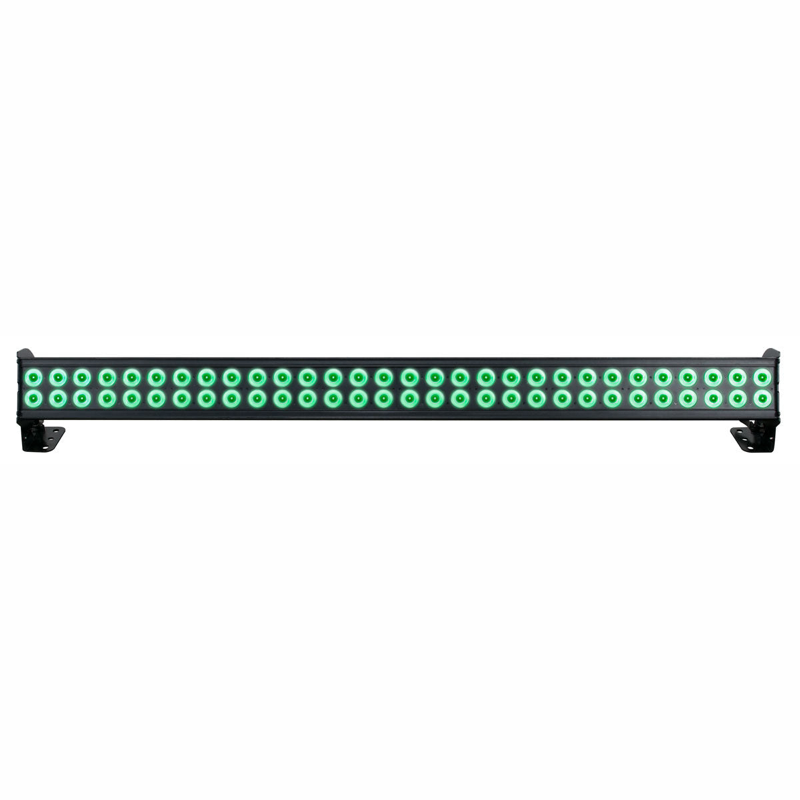

“The SEVEN BATTEN 72™ is a seven color 6 foot (1.8m) long batten wash luminaire with (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 10 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and Locking Power Cable in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.”

Physical

Weight26.3 kg
Length1829 mm
Width114 mm
Height229 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C

Electrical

Power Consump.1000 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorLocking Power | 3/5pin XLR | RJ45

Optical & Wheels

SourceBar / Batten
EmittersRed-LED | Green-LED | Blue-LED | Lime-LED | Amber-LED | UV-LED | White-LED
Lumens19,000 lm
CRI90
Zoom Min---
Zoom Max---
Color Wheels1 [65]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

RGB3 ch
RGBSeven3 ch
HSI4 ch
8Bit7 ch
HSI Master10 ch
16Bit14 ch
Ext15 ch
16bit Dim16 ch
HSI Cell38 ch
Cells70 ch
Cells Dim72 ch
Ext Cells78 ch
