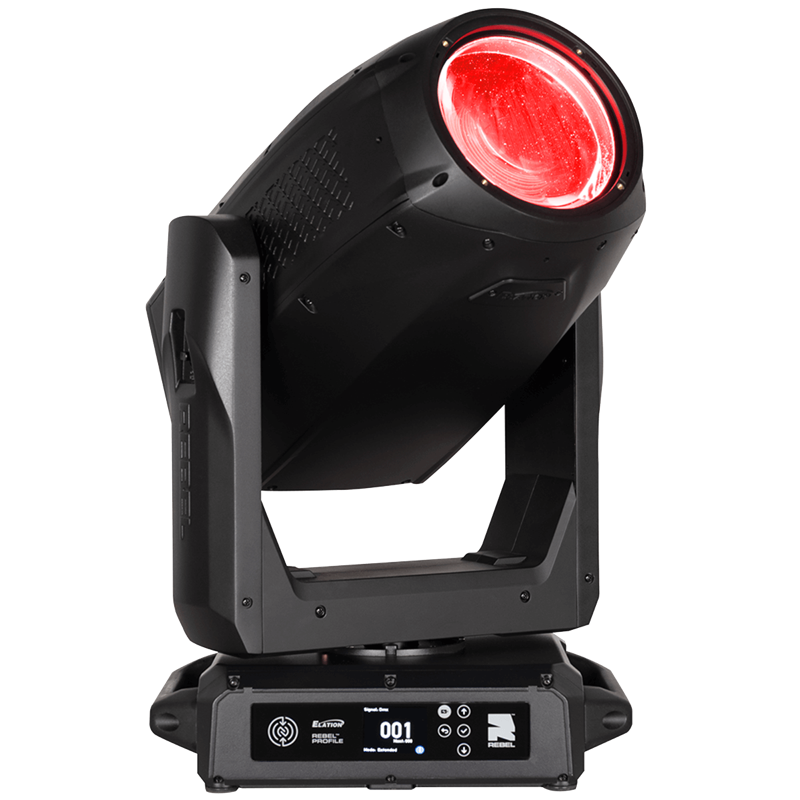

REBEL Profile

REBEL Profile

Elation

#2824
Short Name: RblPrf

“The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 500W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects. A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris. The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set. A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.”

Physical

Weight29.9 kg
Length398 mm
Width281 mm
Height666 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.950 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR | IP65 RJ45

Optical & Wheels

SourceProfile
EmittersWhite LED
Lumens22,000 lm
CRI70
Zoom Min3.5°
Zoom Max51°
Color Wheels2 [8 | 3]
Gobo Wheels2 [8 | 9]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard36 ch
Extended37 ch
