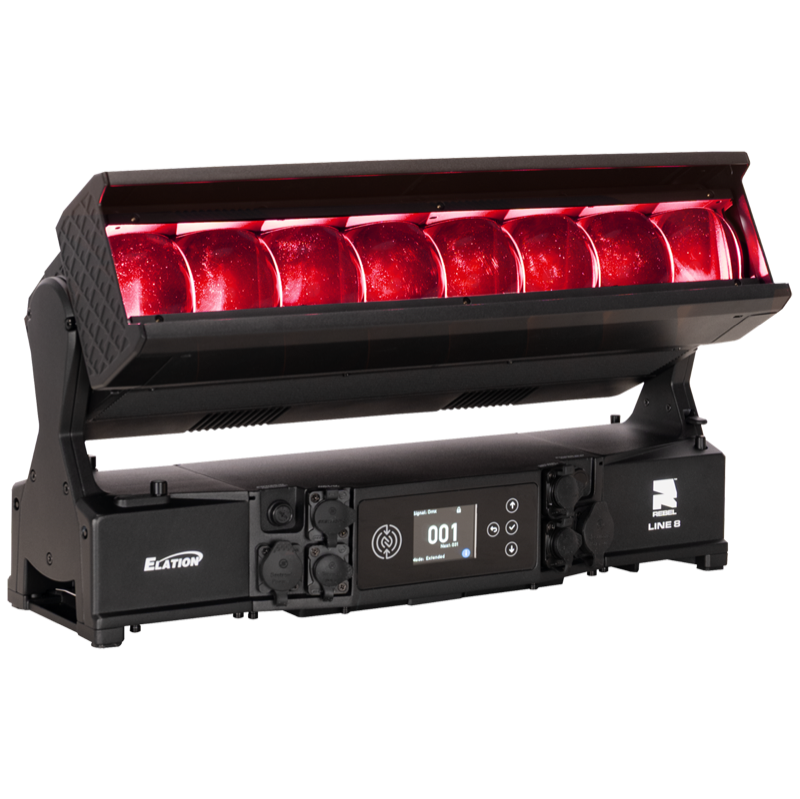

REBEL Line 8
Elation
#2823Short Name: RblLn8
“The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.”
Physical
Weight13.3 kg
Length502 mm
Width164 mm
Height336 mm
IP RatingIP55
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.810 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR | IP65 RJ45
Optical & Wheels
SourceBar / Batten
EmittersRed LED | Green LED | Blue LED | Mint LED
Lumens11,548 lm
CRI82
Zoom Min4°
Zoom Max35°
Color Wheels2 [68 | 61]
Gobo Wheels---
Movement
Pan Range---
Tilt Range210°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard22 ch
Extended30 ch
Pixel70 ch
