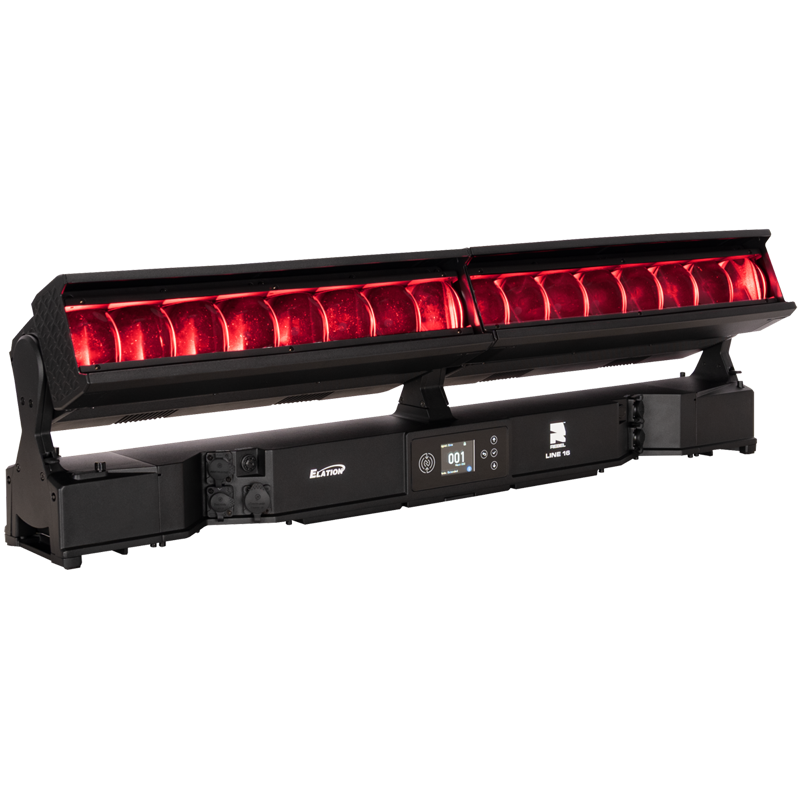

REBEL Line 16

REBEL Line 16

Elation

#2822
Short Name: RblLn16

“The REBEL LINE 16 amplifies the force of the Rebel Series with a commanding 16-cell format—delivering massive output, precision optics, and a rich, full-spectrum palette inside a rugged IP55 chassis. Sixteen high-intensity 60W RGBL engines and thirty-two CW SparkX pixels surge together to unleash 25,355 lumens of relentless color and cool-white punch for designers who push their rigs harder.”

Physical

Weight23.3 kg
Length1004 mm
Width140 mm
Height336 mm
IP RatingIP55
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.1690 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR | IP65 RJ45

Optical & Wheels

SourceBar / Batten
EmittersRed LED | Green LED | Blue LED | Mint LED
Lumens25,355 lm
CRI82
Zoom Min4°
Zoom Max35°
Color Wheels2 [68 | 61]
Gobo Wheels---

Movement

Pan Range---
Tilt Range210°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard24 ch
Extended31 ch
Extended Pixel122 ch
Standard Dual Cell44 ch
Extended Dual Cell60 ch
Pixel Dual Cell140 ch
