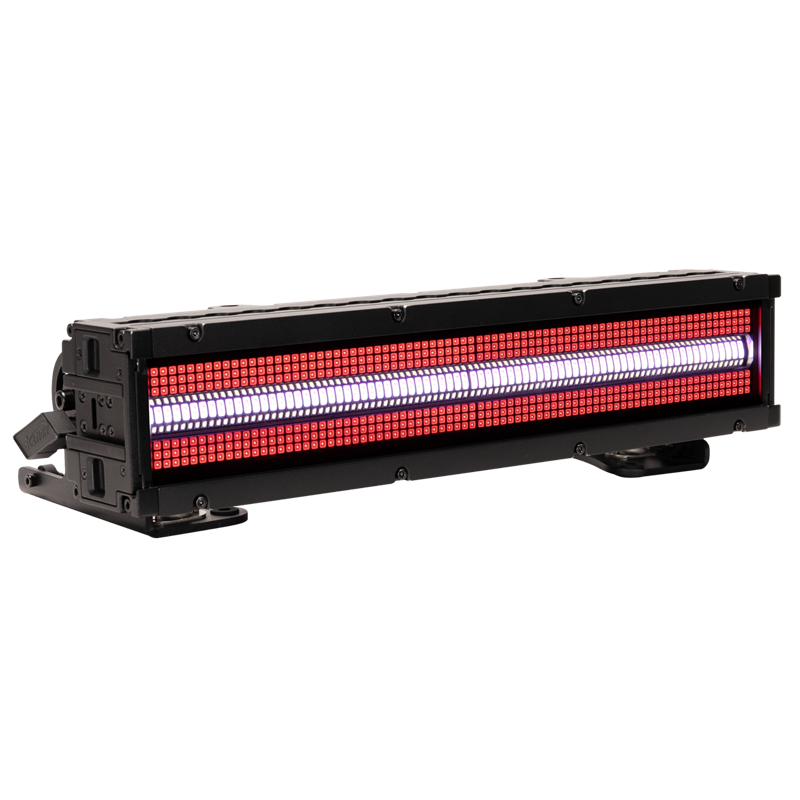

Pulse Bar S
Elation
#2818Short Name: PulsbrS
“The PULSE BAR S Includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. Wrapped in a durable, fully IP65-rated housing, the PULSE BAR S is suitable for any environment, indoors or outdoors, and its marine grade coating adds additional protection for harsher environments- even coastal locations.”
Physical
Weight7.2 kg
Length501 mm
Width200 mm
Height206 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.750 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Locking Power | IP65 5pin XLR | IP65 RJ45
Optical & Wheels
SourceBar / Batten
EmittersRed | Green | Blue | CW
Lumens10,400 lm
CRI70
Zoom Min---
Zoom Max---
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Xenon Strobe3 ch
Simple Strobe11 ch
Strobe FX22 ch
Large Pixels34 ch
Simple Pixel52 ch
Basic Full Control77 ch
Raw Mode110 ch
Pixel Focus124 ch
Full Control132 ch
