Proton 3K Color

Proton 3K Color

Elation

#2814
Short Name: Proton3KColor

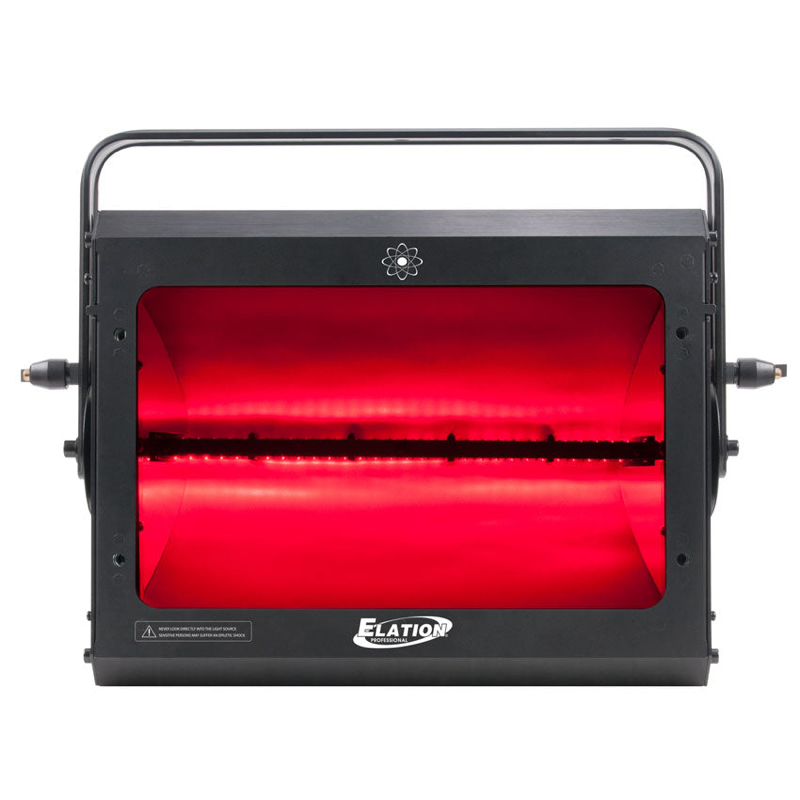

“The Protron 3K Color™ is a new high powered LED strobe featuring (240) CREE™ XLamp™ 3W RGBW LEDs, 40,000 total peak lumens, 63° beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lightning, and full ON*, (2) silent cooling fans, electronic dimming, 3/5pin DMX and Locking Power Cable in/out connections, (4) button OLED control menu display, an integrated rigging yoke, 800W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight11 kg
Length506 mm
Width150 mm
Height357 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.890 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | PowerCON

Optical & Wheels

SourceStrobe
Emitters---
Lumens40,000 lm
CRI---
Zoom Min63°
Zoom Max63°
Color Wheels---
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

3 Channel3 ch
5 Channel5 ch
7 Channel7 ch
8 Channel8 ch
