Proteus Hybrid Max OPS
Elation
#2801Short Name: ProHybrdMxOPS

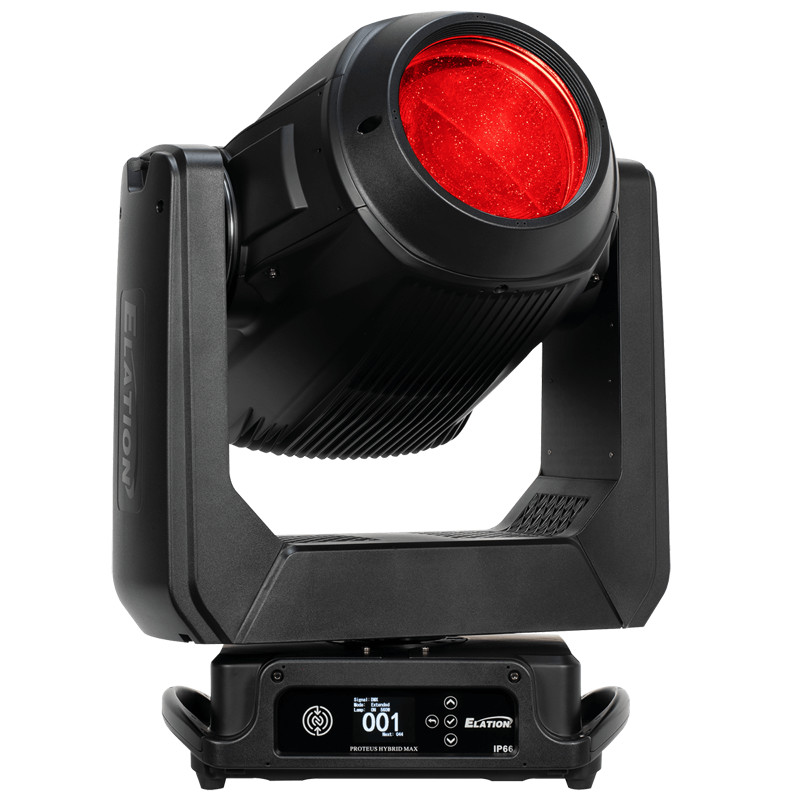

“The PROTEUS HYBRID MAX OPS combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX OPS is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp. Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options.”
Physical
Weight35.5 kg
Length287 mm
Width477 mm
Height677 mm
IP RatingIP66
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.800 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1
Optical & Wheels
SourceHybrid BSW
EmittersPhilips MSD Platinum 500 Flex 550W Lamp
Lumens22,000 lm
CRI---
Zoom Min1.8°
Zoom Max45°
Color Wheels2 [17 | 5]
Gobo Wheels3 [10 | 17 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard32 ch
Extended43 ch
