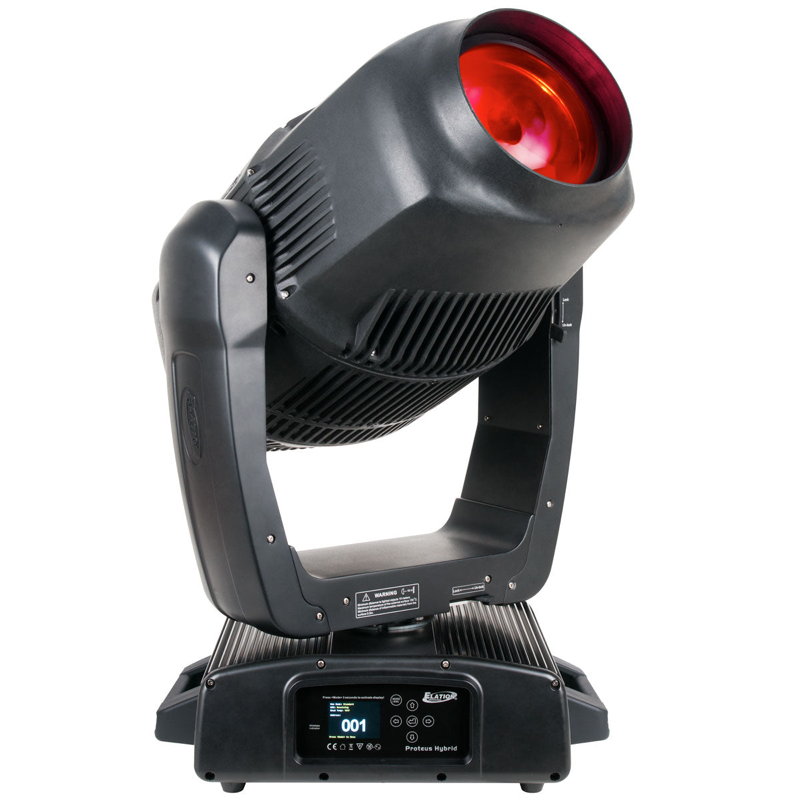

Proteus Hybrid

Proteus Hybrid

Elation

#2799
Short Name: Proteus_Hybrid

“PROTEUS HYBRID™ is an IP65 rated 3-in-1 hybrid moving head beam, spot, and wash luminaire with the Philips™ MSD Platinum 21R 470W 80 CRI 8,000K lamp producing up to14,000 lumens. Features include an advanced optical system with motorized zoom from 2° in beam mode to 38° in spot mode or 40° in wash mode, an advanced internal thermal cooling system, full CMY and linear CTO color mixing, 14 dichroic colors including CTB, CTO, and UV, 8 rotating glass interchangeable and 14 static-stamped metal gobos, full 360° bi-directional animation wheel, 8-facet and linear rotating prisms and frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 ethernet in/out connections, IP65 Locking Power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight38 kg
Length465 mm
Width571 mm
Height805 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.700 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceHybrid BSW
EmittersLED Engine
Lumens15,000 lm
CRI---
Zoom Min2.1°
Zoom Max21.5°
Color Wheels2 [15 | 4]
Gobo Wheels3 [9 | 15 | 2]

Movement

Pan Range630°
Tilt Range265°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic24 ch
Standard28 ch
Extended37 ch
