Proteus Beam

Proteus Beam

Elation

#2795
Short Name: ProBeam

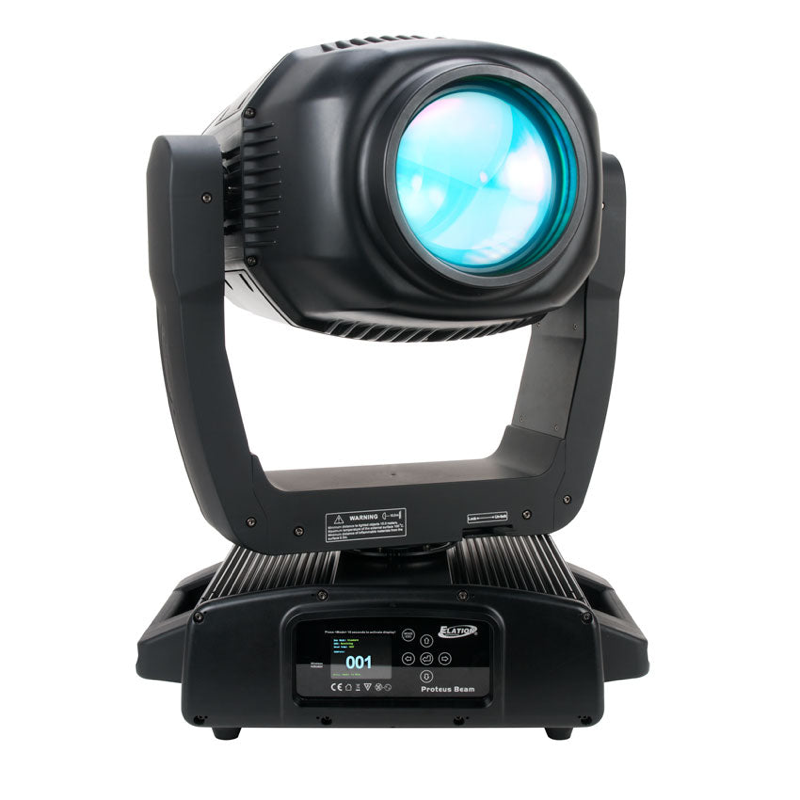

“PROTEUS BEAM™ is an IP65 rated moving head beam luminaire with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens. Features include an advanced optical system producing a precise 2.5° beam aperture, a revolutionary internal thermal cooling system, full CMY color mixing, 13 dichroic colors including CTB, CTO, and UV, 8 rotating interchangeable metal and 13 static-stamped metal gobos, 5 and 32 facet rotating prisms, frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 etherCON in/out connections, IP65 Locking Power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight34 kg
Length460 mm
Width535 mm
Height770 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.600 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceBeam
EmittersPhilips MSD Platinum 500 Flex 550W Lamp
Lumens12,000 lm
CRI---
Zoom Min1.5°
Zoom Max1.5°
Color Wheels2 [16 | 4]
Gobo Wheels2 [10 | 14]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic15 ch
Standard18 ch
Extended20 ch
