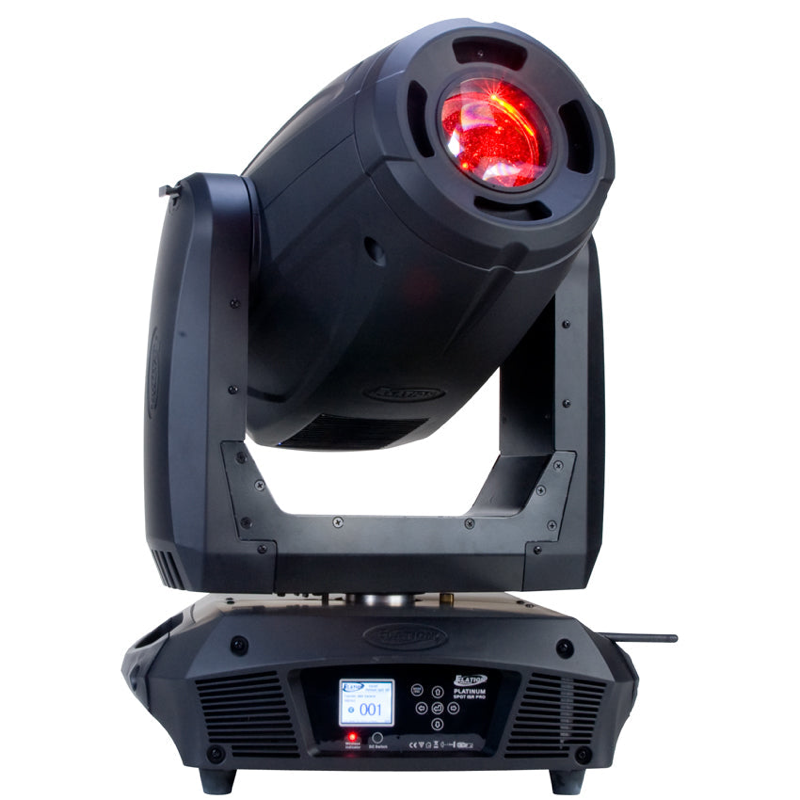

Platinum Spot 15R Pro
Elation
#2794Short Name: PltSpt15Pro
“New 300W MSD Platinum 15R Lamp Comparable Output To 700W And 1,200W Fixtures 1/3 Size Of 1200W Fixtures And 1/4 Power Consumption CMY Color Mixing System Variable Zoom (3 To 1) Increased Speed On All Motors Superior Optics Flat / Even Light Field And Improved Output Hybrid Technology Spot / Wash EWDMXR Built In Featuring New Philips MSD Platinum 15R Lamp”
Physical
Weight22.2 kg
Length360 mm
Width340 mm
Height505 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.462 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | PowerCON
Optical & Wheels
SourceSpot
EmittersPhilips MSD Platinum 5R Lamp
Lumens12,000 lm
CRI---
Zoom Min9°
Zoom Max27°
Color Wheels3 [7 | 1 | 15]
Gobo Wheels1 [9]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard22 ch
Extended24 ch
Basic18 ch
