Pixel Bar 60IP
Elation
#2791Short Name: Pxbr60IP

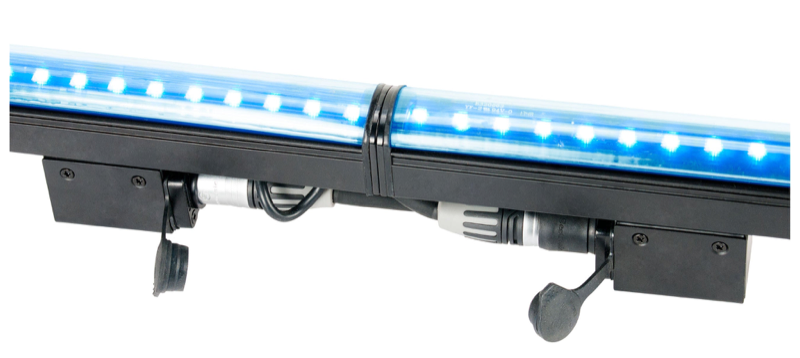

“PIXEL BAR 60IP is a professional-grade lighting solution. The PIXEL BAR 60IP is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length.”
Physical
Weight1.2 kg
Length967 mm
Width34 mm
Height83 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.12 W
Voltage24V - 24V
Frequency50Hz - 60Hz
Connector4-pin Power/Data
Optical & Wheels
SourceBar / Batten
EmittersRed | Green | Blue
Lumens600 lm
CRI---
Zoom Min120°
Zoom Max120°
Color Wheels1 [34]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
3 Channel3 ch
180 Channel180 ch
