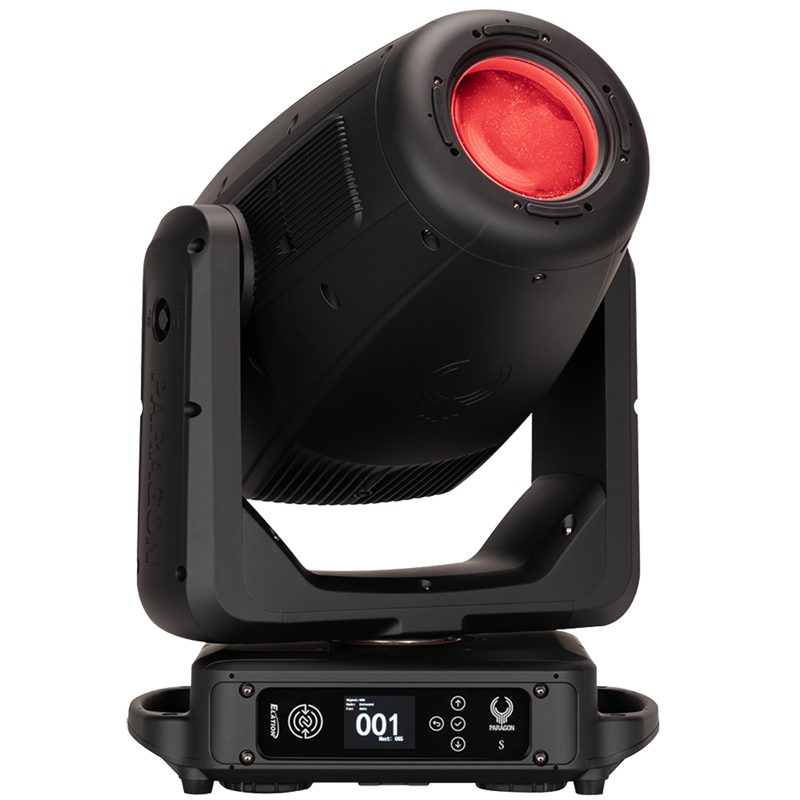

Paragon S

Paragon S

Elation

#2788
Short Name: Prgn S

“The PARAGON S™ is the ideal fixture for various applications requiring superior output, bright and powerful beams, quiet operation, precise gobos, colors, and framing cuts. With a custom-designed variable, the CRI LED engine provides up to 20500 lumens output (at CRI 80), providing exceptional output and true-to-life color accuracy control. Utilizing variable CRI technology, the PARAGON S™ utilizes Elation’s TruTone empowering designers to effortlessly balance light output and color accuracy to meet the specific demands of each scene or show. Its seamless adjustability from CRI 70 to CRI 93 ensures accurate and vivid color fidelity, with infinite control over the underlying white spectrum for enhanced mixed tones. The PARAGON S™ offers a powerful FX package, including seven rotating glass gobos, nine fixed metal gobos, a fully interchangeable animation wheel, dual prisms, dual frost effects, and a high-speed iris. The animation wheel can be swapped for custom designs or an optional seven-gobo position disc for customization. Its 240-degree indexable framing system ensures precision with full-blackout shutter cuts, while its dynamic zoom range of 5° to 50° makes it a standout performer on any stage.”

Physical

Weight23 kg
Length260 mm
Width390 mm
Height595 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.750 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceProfile
EmittersMain LED
Lumens23,000 lm
CRI93
Zoom Min5°
Zoom Max50°
Color Wheels2 [8 | 3]
Gobo Wheels4 [8 | 10 | 2 | 7]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard 141 ch
Extended 164 ch
