Paladin Panel

Paladin Panel

Elation

#2785
Short Name: PalPnl

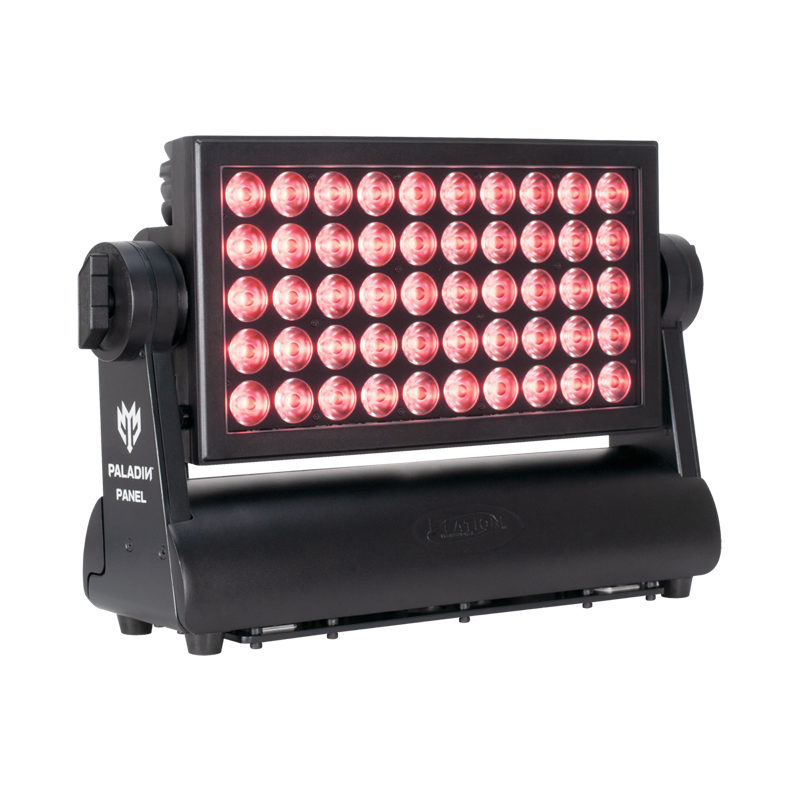

“The PALADIN PANEL™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 50x15W RGBW cells it provides a total output of up to 20,000 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN PANEL also a versatile effects fixture or audience blinder.”

Physical

Weight23 kg
Length531 mm
Width148 mm
Height348 mm
IP RatingIP65
Temp Low0°C
Temp High40°C

Electrical

Power Consump.990 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerconTRUE1

Optical & Wheels

SourceSoftlight / Panel
EmittersRed | Green | Blue | White
Lumens20,000 lm
CRI---
Zoom Min6°
Zoom Max32°
Color Wheels1 [65]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

3 Channel3 ch
4 Channel4 ch
6 Channel6 ch
8 Channel8 ch
9 Channel9 ch
14 Channel14 ch
22 Channel22 ch
88 Channel88 ch
