KL Spot IP

KL Spot IP

Elation

#2778
Short Name: KLSptIP

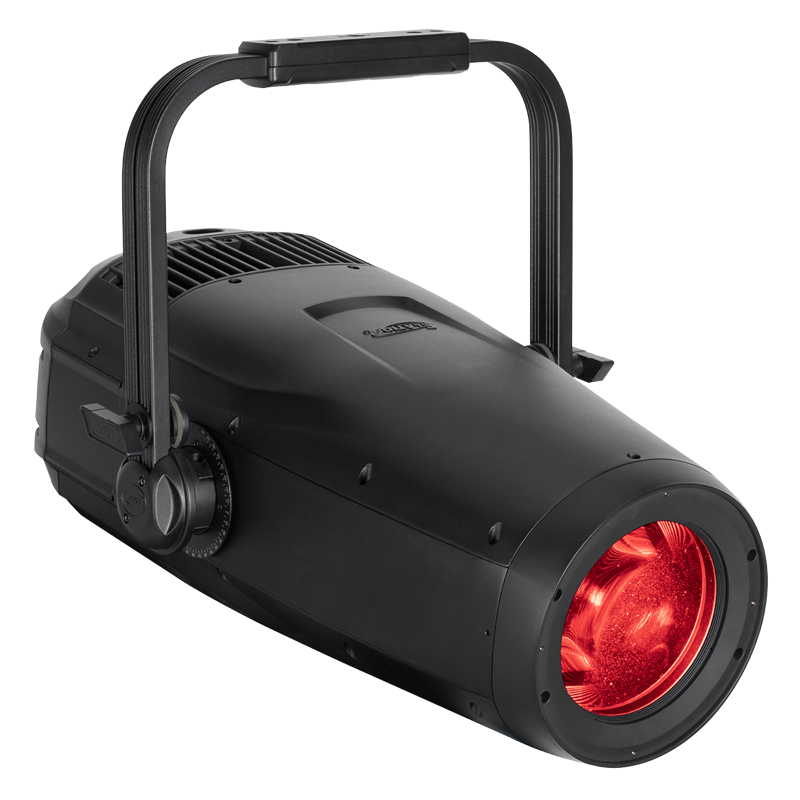

“The KL SPOT IP™ is an IP65 static LED spot fixture designed for a wide array of precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array.”

Physical

Weight10.6 kg
Length366 mm
Width284 mm
Height428 mm
IP RatingIP65
Temp Low-15°C
Temp High45°C

Electrical

Power Consump.350 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerconTRUE1

Optical & Wheels

SourceProfile
EmittersRed-LED | Green-LED | Blue-LED | Mint-LED | Amber-LED
Lumens10,000 lm
CRI92
Zoom Min7°
Zoom Max50°
Color Wheels3 [63 | 3 | 61]
Gobo Wheels3 [8 | 7 | 1]

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1 Channel1 ch
5 Channel5 ch
7 Channel7 ch
11 Channel11 ch
12 Channel12 ch
18 Channel18 ch
