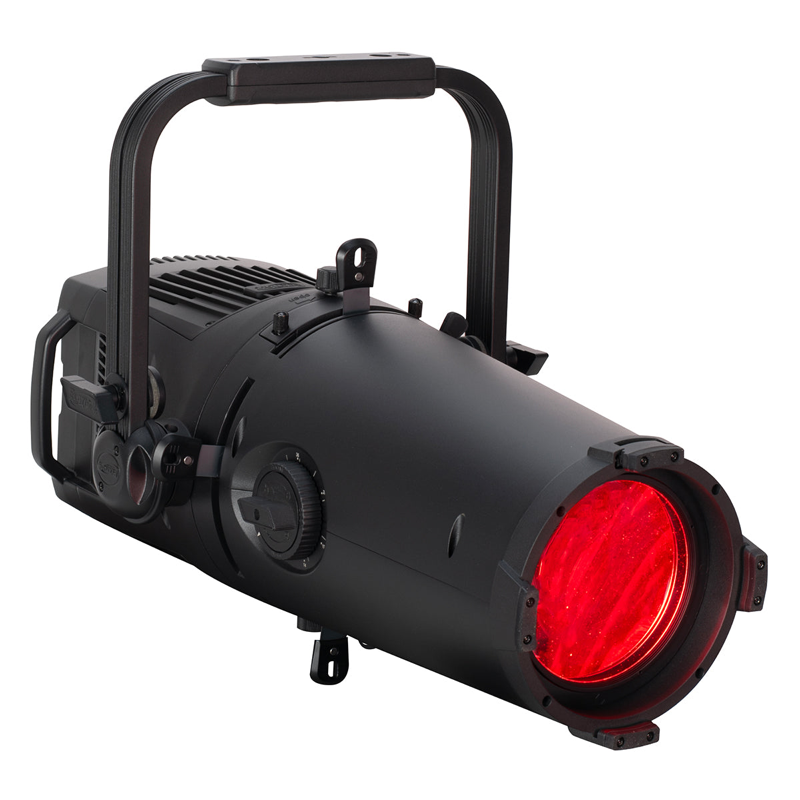

KL Profile FC
Elation
#2777Short Name: KL Prof FC
“The KL PROFILE FC is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 7 to 50 degrees the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue or show. The integrated manual Iris allows further beam control.”
Physical
Weight15.8 kg
Length638 mm
Width390 mm
Height490 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C
Electrical
Power Consump.358 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | PowerconTRUE1
Optical & Wheels
SourceProfile
EmittersRed-LED | Green-LED | Blue-LED | Mint-LED | Amber-LED
Lumens10,000 lm
CRI92
Zoom Min7°
Zoom Max50°
Color Wheels2 [63 | 61]
Gobo Wheels1 [1]
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1 Channel1 ch
5 Channel5 ch
7 Channel7 ch
11 Channel11 ch
12 Channel12 ch
18 Channel18 ch
25 Channel25 ch
