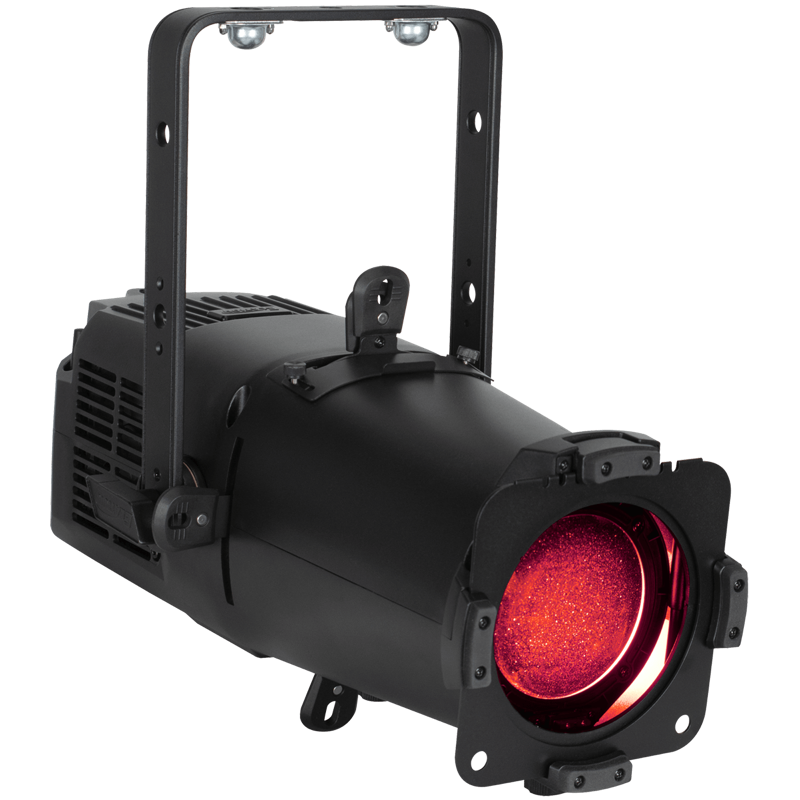

KL Profile Compact
Elation
#2776Short Name: KLPrfCpt
“Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality.”
Physical
Weight10.5 kg
Length650 mm
Width285 mm
Height395 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C
Electrical
Power Consump.180 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | PowerconTRUE1
Optical & Wheels
SourceProfile
EmittersRed-LED | Green-LED | Blue-LED | Mint-LED | Amber-LED
Lumens6,000 lm
CRI95
Zoom Min18°
Zoom Max38°
Color Wheels2 [63 | 61]
Gobo Wheels1 [1]
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1 Channel1 ch
3 Channel3 ch
4 Channel4 ch
6 Channel6 ch
7 Channel7 ch
8 Channel8 ch
9 Channel9 ch
11 Channel11 ch
18 Channel18 ch
