KL Panel
Elation
#2771Short Name: KLPnl

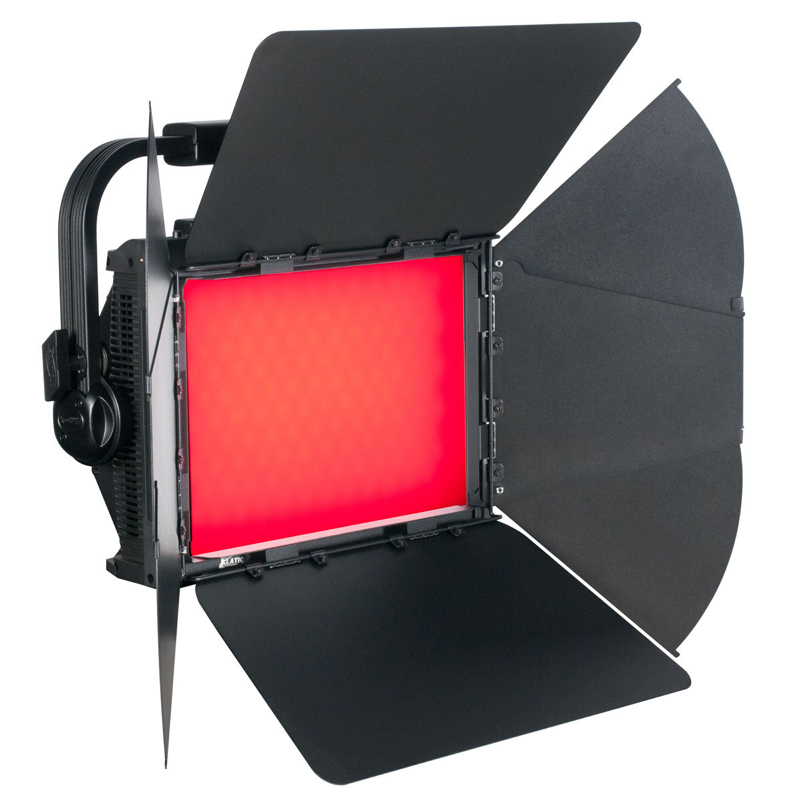

“The KL PANEL is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality.”
Physical
Weight13 kg
Length528 mm
Width140 mm
Height310 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.295 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | XLR4 | PowerconTRUE1
Optical & Wheels
SourceSoftlight / Panel
EmittersRed | Green | Blue | White | Lime | Cyan
Lumens24,000 lm
CRI95
Zoom Min101°
Zoom Max111°
Color Wheels2 [60 | 68]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1 Channel1 ch
2 Channel2 ch
3 Channel3 ch
4 Channel4 ch
6 Channel6 ch
7 Channel7 ch
8 Channel8 ch
9 Channel9 ch
15 Channel15 ch
