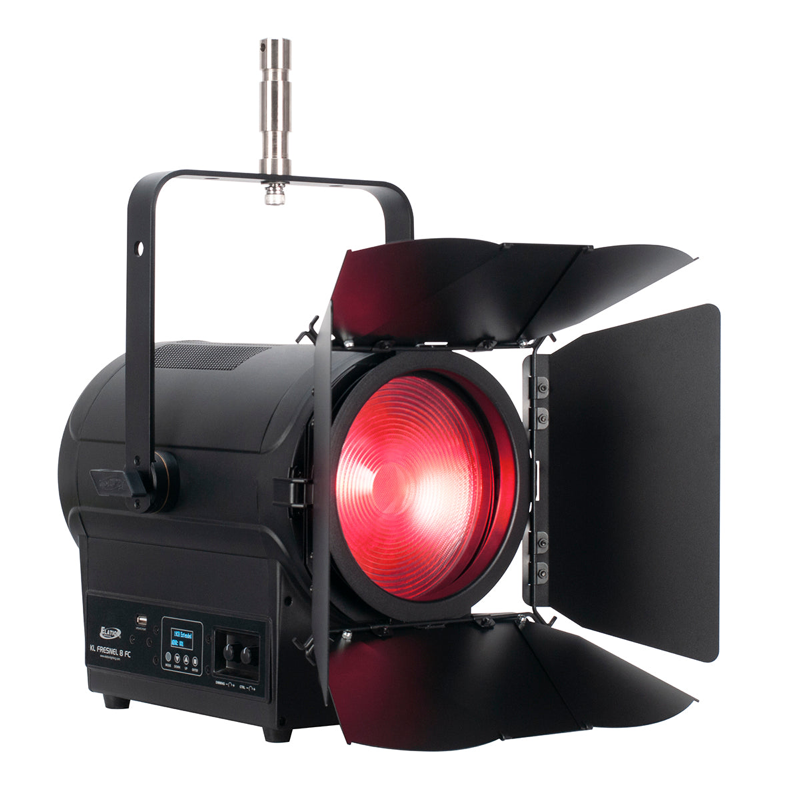

KL Fresnel 8 FC
Elation
#2769Short Name: KL Fres FC
“LED Fresnel with RGBMA Color Array, CMY Emulation, variable CCT 2.400k - 8.500K, Green/Magenta Shift, Motorized Zoom Range 10°-50°”
Physical
Weight10.5 kg
Length383 mm
Width327 mm
Height455 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C
Electrical
Power Consump.514 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | PowerCON
Optical & Wheels
SourceFresnel
EmittersRed-LED | Green-LED | Blue-LED | Mint-LED | Amber-LED
Lumens18,000 lm
CRI94.5
Zoom Min10°
Zoom Max50°
Color Wheels2 [67 | 63]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1 Channel1 ch
5 Channel5 ch
7 Channel7 ch
10 Channel10 ch
11 Channel11 ch
12 Channel12 ch
14 Channel14 ch
15 Channel15 ch
16 Channel16 ch
19 Channel19 ch
20 Channel20 ch
