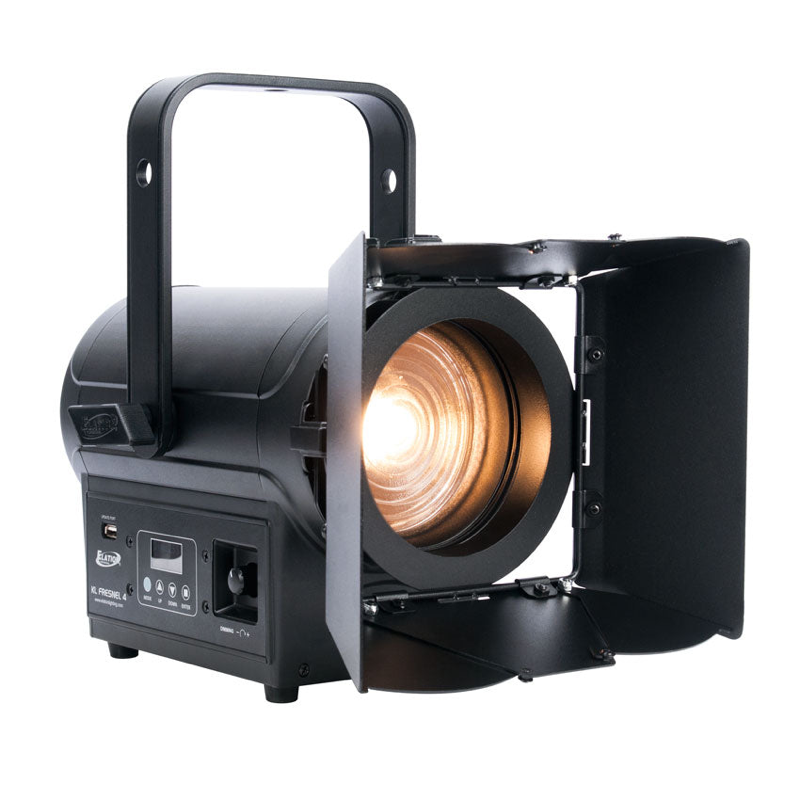

KL Fresnel 4

KL Fresnel 4

Elation

#2759
Short Name: KLFrsnl4

“KL FRESNEL 4™ is a 50W 3,000K >97CRI Warm White LED fresnel, producing over 1,900 total lumen output, on par with compatible tungsten halogen models. Features include 14° to 30° wide manual zoom, manual and DMX controlled dimmer and shutter, rotary dimmer and zoom dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, RDM (remote device management) protocol support, 5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating barn doors (included), and a 3 clamp position adjustable mounting yoke.”

Physical

Weight4.1 kg
Length345 mm
Width201 mm
Height289 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C

Electrical

Power Consump.50 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerCON

Optical & Wheels

SourceFresnel
Emitters---
Lumens1,900 lm
CRI97
Zoom Min14°
Zoom Max30°
Color Wheels---
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1 Channel1 ch
2 Channel2 ch
3 Channel3 ch
4 Channel4 ch
5 Channel5 ch
