KL Core IP

KL Core IP

Elation

#2756
Short Name: KLCoreIP

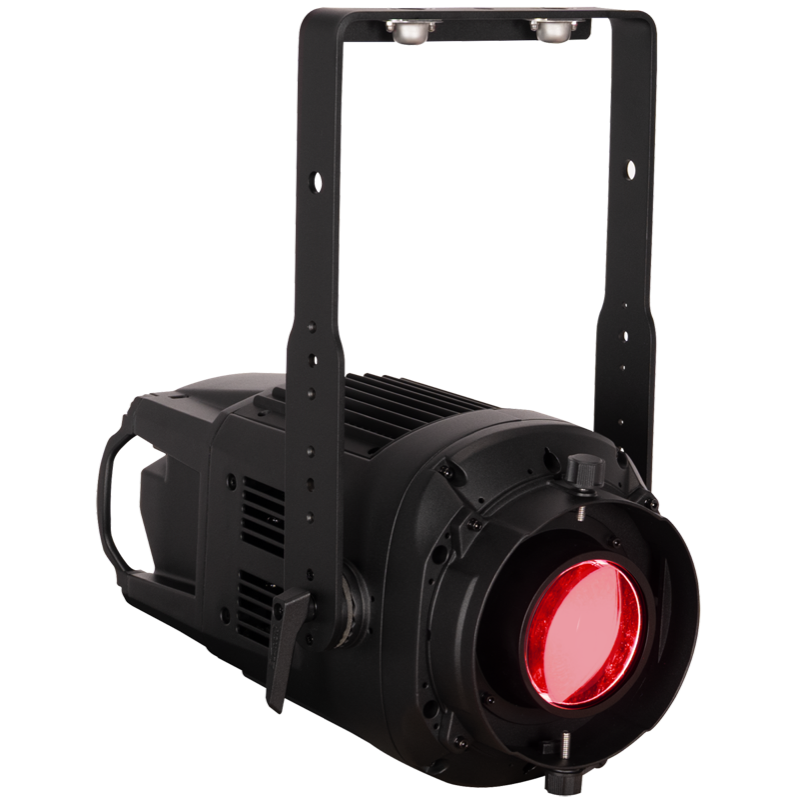

“The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output. The KL CORE IP’s fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal.”

Physical

Weight6 kg
Length230 mm
Width292 mm
Height250 mm
IP RatingIP65
Temp Low-15°C
Temp High45°C

Electrical

Power Consump.180 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerconTRUE1

Optical & Wheels

SourceWash
EmittersRed-LED | Green-LED | Blue-LED | Mint-LED | Amber-LED
Lumens8,000 lm
CRI92
Zoom Min7°
Zoom Max50°
Color Wheels2 [63 | 61]
Gobo Wheels1 [1]

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1 Channel1 ch
2 Channel2 ch
3 Channel3 ch
4 Channel4 ch
6 Channel6 ch
8 Channel8 ch
