Fuze Wash Z350

Fuze Wash Z350

Elation

#2754
Short Name: FzWshZ350

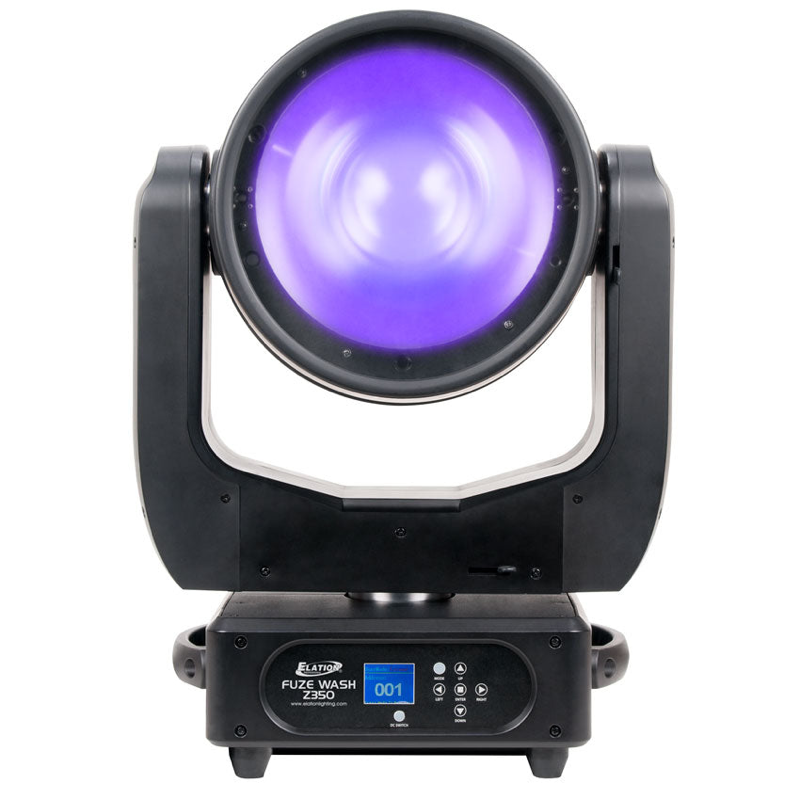

“The FUZE WASH Z350™ is a single source par moving head luminaire featuring a 350W Quad Color RGBW COB LED, 6° to 46° motorized zoom, pan and tilt, RGBW color mixing, variable dimming curve and strobe effects, DMX and RDM (remote device management) protocol support, DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).”

Physical

Weight20.2 kg
Length414 mm
Width294 mm
Height578 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.399 W
Voltage110V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerCON

Optical & Wheels

SourceWash
EmittersRed | Green | Blue | White
Lumens7,500 lm
CRI---
Zoom Min10°
Zoom Max55°
Color Wheels1 [65]
Gobo Wheels---

Movement

Pan Range630°
Tilt Range250°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard19 ch
Extended21 ch
Basic14 ch
