Fuze Wash FR

Fuze Wash FR

Elation

#2752
Short Name: FzwshFR

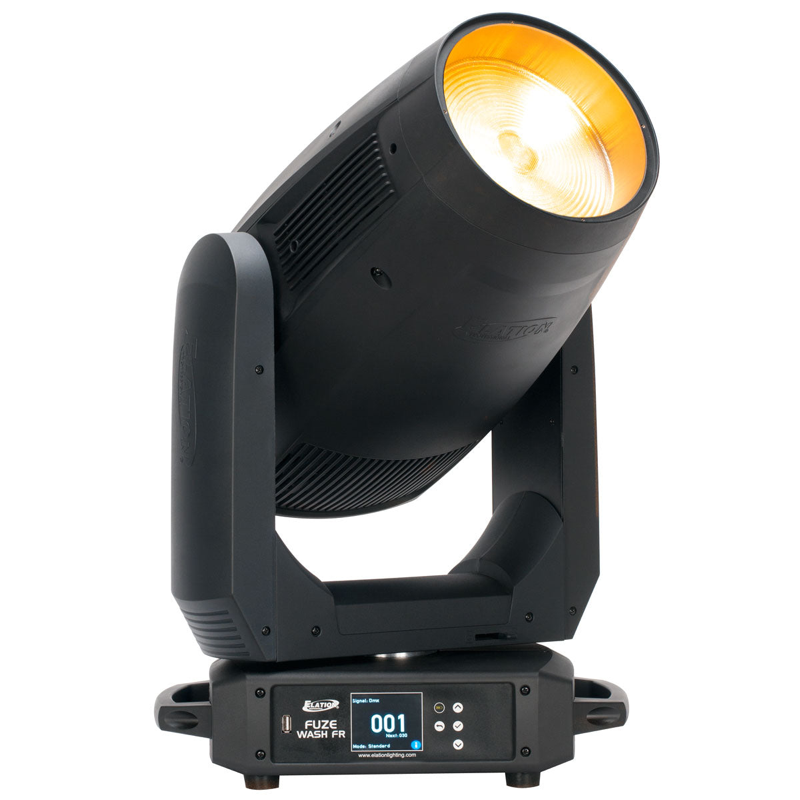

“The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 15,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.”

Physical

Weight27.5 kg
Length408 mm
Width256 mm
Height679 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.675 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceFresnel
EmittersRed | Green | Blue | Mint | Amber
Lumens15,000 lm
CRI92
Zoom Min9°
Zoom Max60°
Color Wheels3 [61 | 2 | 63]
Gobo Wheels---

Movement

Pan Range630°
Tilt Range267°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

CMY Standard36 ch
CMY Extended55 ch
RGBMA Standard38 ch
RGBMA Extended59 ch
