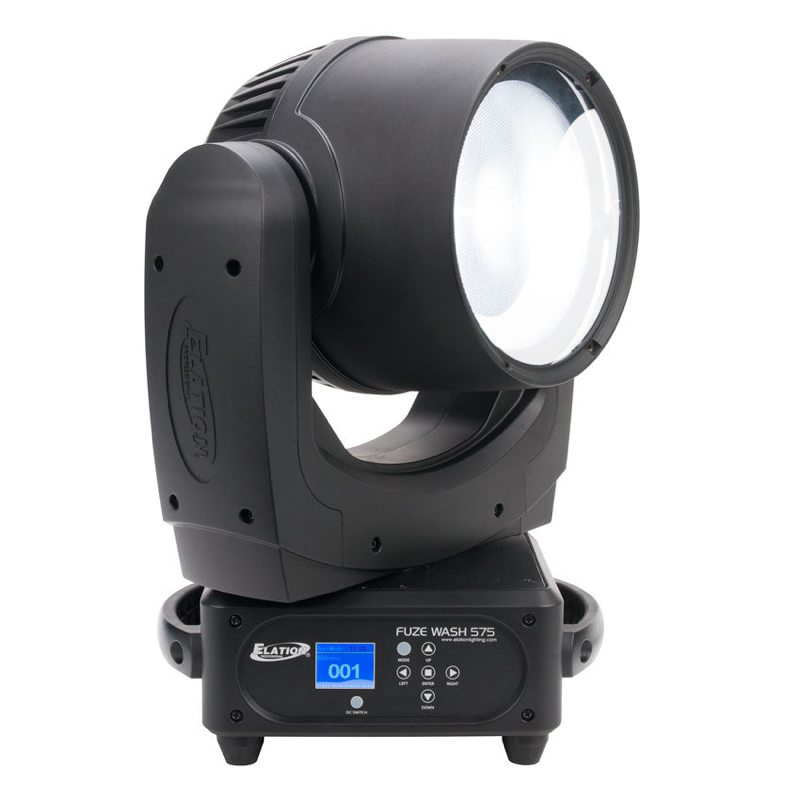

Fuze Wash 575

Fuze Wash 575

Elation

#2751
Short Name: FzWsh575

“The FUZE WASH 575™ is a single source par moving head luminaire with a high output 350W Cool White / Daylight 6,800K 95CRI COB LED engine, 11° to 40° motorized zoom, smooth 16-bit pan and tilt movement, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight12.2 kg
Length338 mm
Width229 mm
Height466 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.425 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerconTRUE1

Optical & Wheels

SourceWash
EmittersWhite
Lumens9,000 lm
CRI95
Zoom Min11°
Zoom Max40°
Color Wheels---
Gobo Wheels---

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard9 ch
Extended11 ch
