Fuze Spot

Fuze Spot

Elation

#2746
Short Name: FzSpot

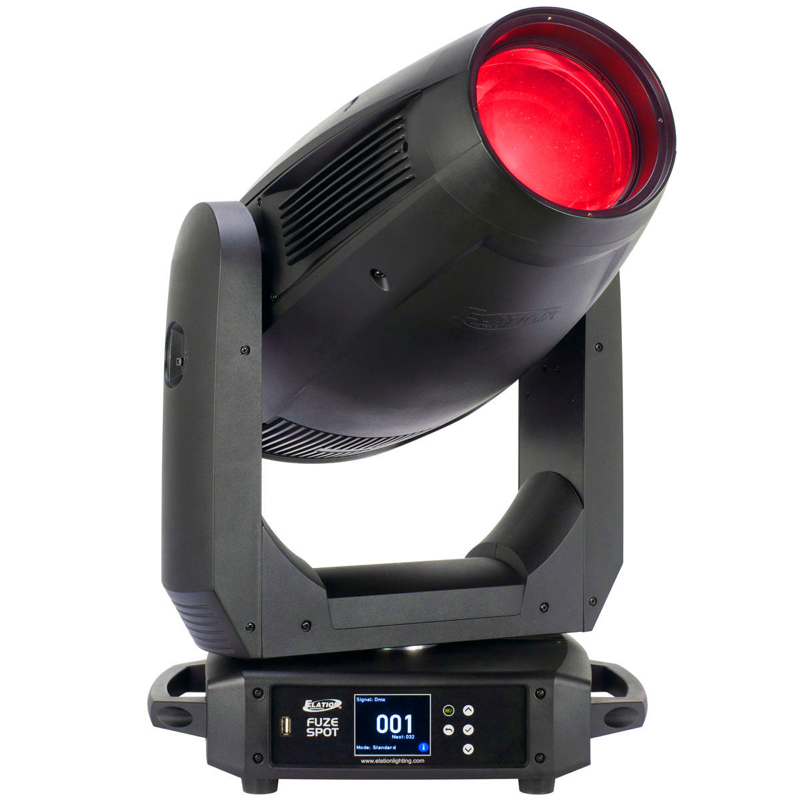

“The FUZE SPOT™ is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications.The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.”

Physical

Weight21 kg
Length407 mm
Width256 mm
Height698 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.463 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceSpot
EmittersRed | Green | Blue | Mint | Amber
Lumens10,100 lm
CRI92
Zoom Min7°
Zoom Max42°
Color Wheels3 [61 | 2 | 63]
Gobo Wheels3 [7 | 7 | 1]

Movement

Pan Range630°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

CMY Standard29 ch
CMY Extended37 ch
RGBMA Standard31 ch
RGBMA Extended41 ch
