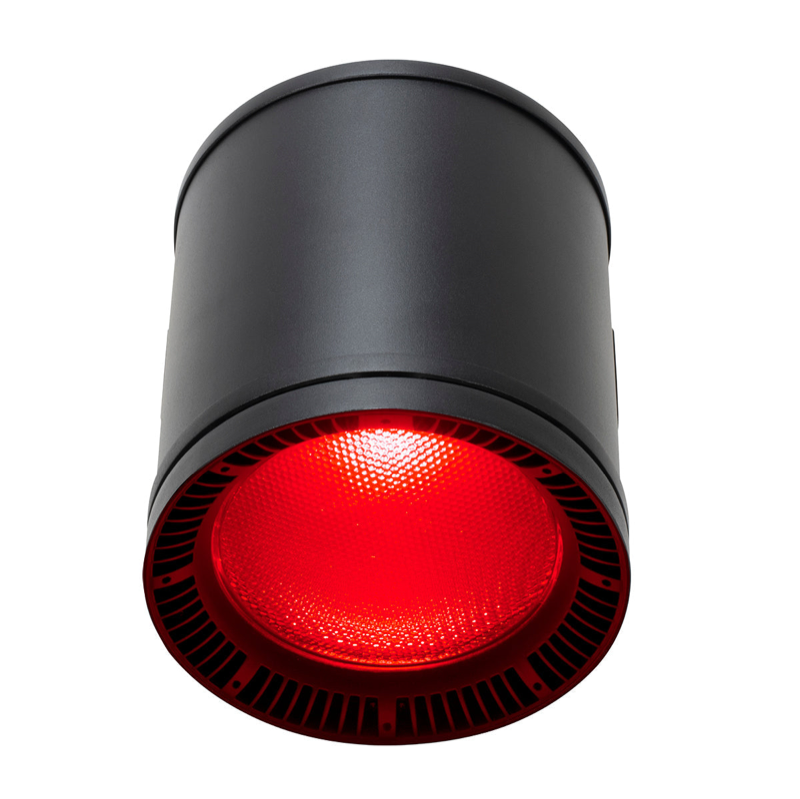

Fuze Pendant Compact

Fuze Pendant Compact

Elation

#2741
Short Name: FuzPdntCmpt

“The FUZE PENDANT Compact™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.”

Physical

Weight5.3 kg
Length197 mm
Width196 mm
Height298 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.144 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | PowerconTRUE1

Optical & Wheels

SourceWash
EmittersRed | Green | Blue | White | Lime
Lumens7,200 lm
CRI90
Zoom Min45°
Zoom Max45°
Color Wheels2 [60 | 68]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1 Channel1 ch
2 Channel2 ch
3 Channel3 ch
4 Channel4 ch
5 Channel5 ch
7 Channel7 ch
8 Channel8 ch
18 Channel18 ch
