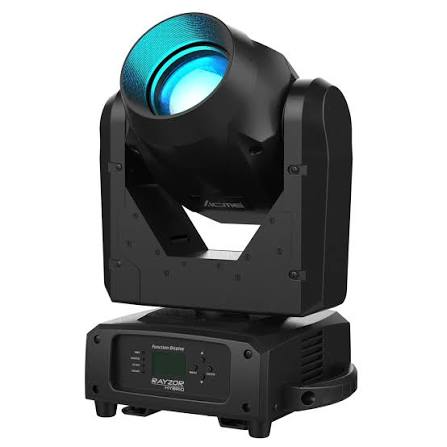

Rayzor Hybrid (XP 16R BSW)
ACME
#274Short Name: RAYZORHYBRID
“Small spot from acme”
Physical
Weight11.5 kg
Length310 mm
Width248 mm
Height450 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.184 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3
Optical & Wheels
SourceHybrid BSW
EmittersColor Wheel Only (14 colors + open)
Lumens3,500 lm
CRI75
Zoom Min3°
Zoom Max35°
Color Wheels1 [16 | 3]
Gobo Wheels1 [6]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard17 ch
Extended20 ch
