Fuze Max Spot

Fuze Max Spot

Elation

#2736
Short Name: FzMxSpot

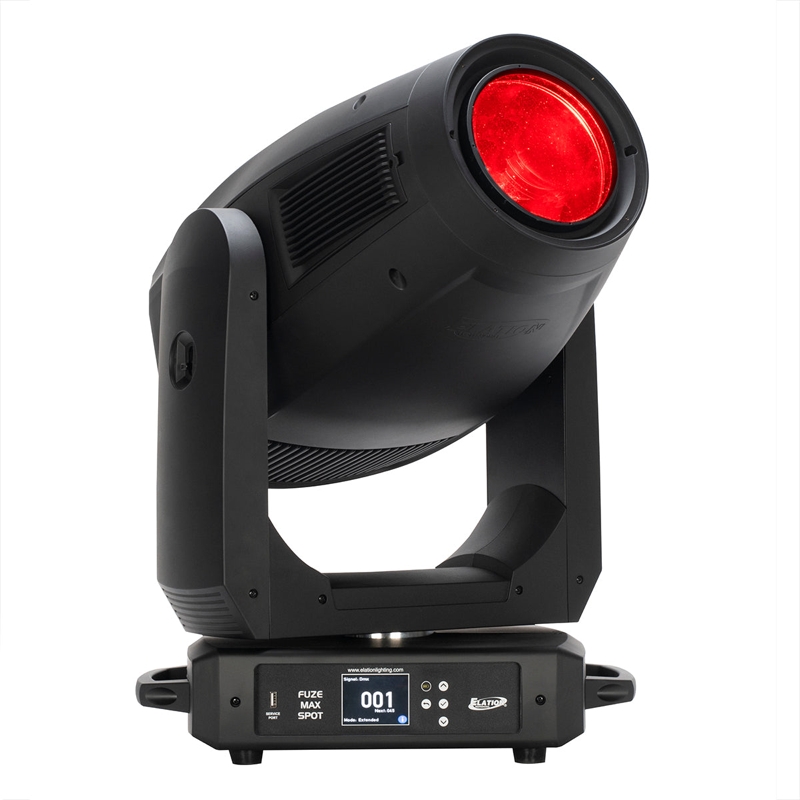

“The FUZE MAX SPOT™ is a full spectrum automated LED Spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array. The FUZE SPOT MAX is designed for any application where fully automated spot fixture with outstanding and compelling color range and quality is required. Two rotating gobo wheels, one fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated spot fixture.”

Physical

Weight34.5 kg
Length462 mm
Width540 mm
Height719 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.1214 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerconTRUE1

Optical & Wheels

SourceSpot
EmittersRed | Green | Blue | Mint | Amber
Lumens21,000 lm
CRI92
Zoom Min7°
Zoom Max53°
Color Wheels3 [61 | 3 | 63]
Gobo Wheels4 [7 | 7 | 1 | 8]

Movement

Pan Range540°
Tilt Range250°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

CMY Standard33 ch
CMY Extended43 ch
RGBMA Standard35 ch
RGBMA Extended49 ch
