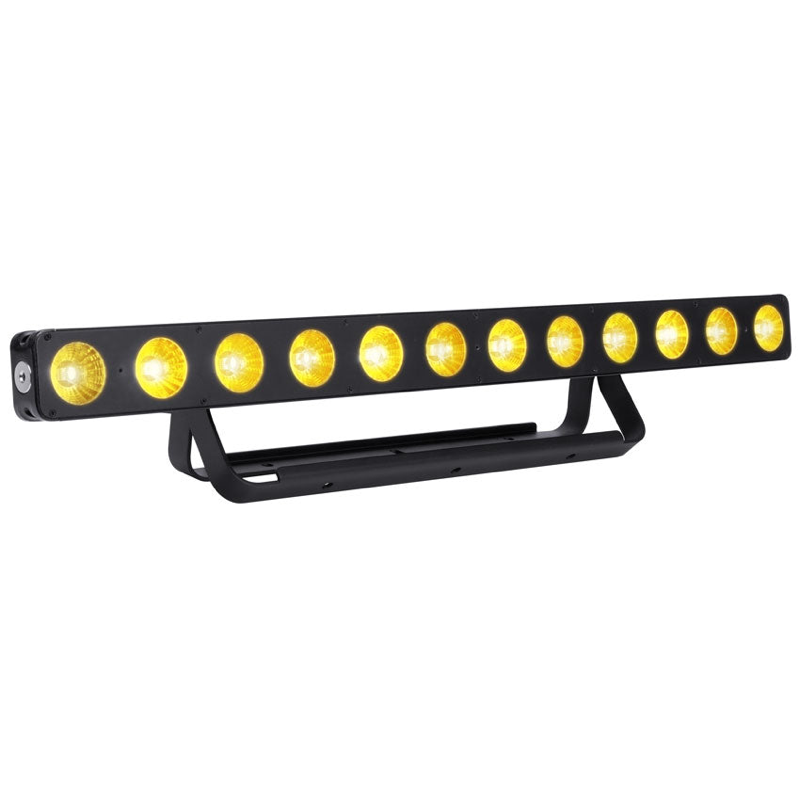

DTW BAR 1000

DTW BAR 1000

Elation

#2731
Short Name: DTW1000

“The DTW BAR 1000™ features (12) 10W multi-chip Cool White / Warm White / Amber LEDs, 20° beam 40° field angles, selectable dim-to-warm control, cool white, warm white, and amber color mixing, full pixel and 1,600K - 6,500K color temperature control, variable 16-bit dimming curve modes, selectable color and program macros, strobe and chase effects, DMX, RDM, KlingNet, and Art-Net protocol support, DMX, RJ45, and Locking Power in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, included frost filter and glare shield, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).”

Physical

Weight6.4 kg
Length900 mm
Width206 mm
Height155 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.120 W
Voltage110V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | RJ45 | PowerCON

Optical & Wheels

SourceBar / Batten
EmittersCW | WW | Amber
Lumens2,500 lm
CRI---
Zoom Min60°
Zoom Max60°
Color Wheels2 [8 | 73]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1 Channel1 ch
2 Channel2 ch
3 Channel3 ch
6 Channel6 ch
7 Channel7 ch
12 Channel12 ch
13 Channel13 ch
36 Channel36 ch
41 Channel41 ch
