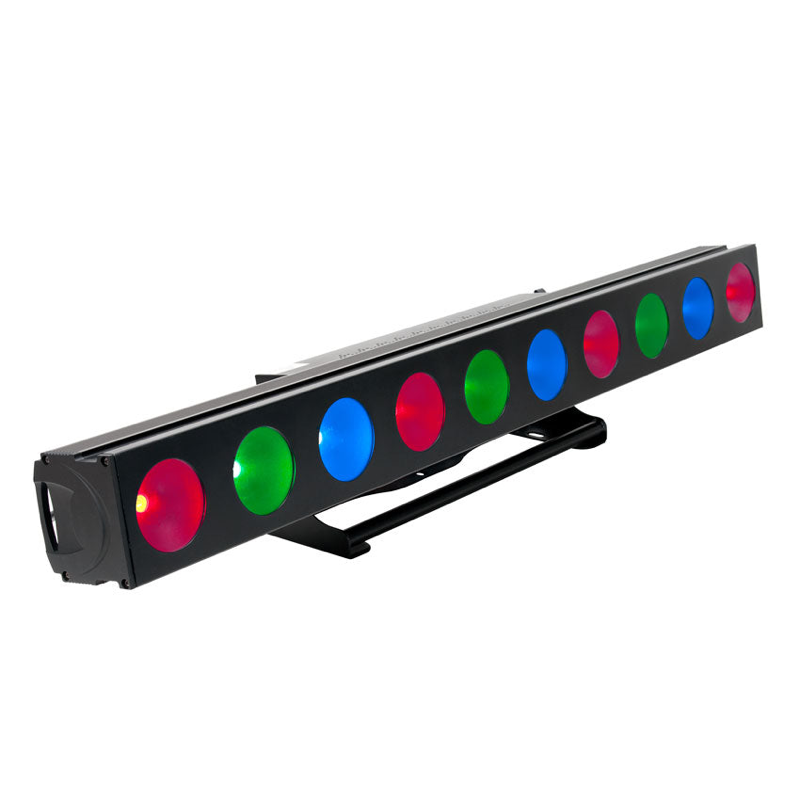

CUEPIX Batten
Elation
#2724Short Name: CUEPIX Batten
Physical
Weight9.5 kg
Length1100 mm
Width121 mm
Height172 mm
IP RatingIP20
Temp Low-15°C
Temp High45°C
Electrical
Power Consump.312 W
Voltage110V - 250V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | RJ45 | PowerCON
Optical & Wheels
SourceBar / Batten
EmittersRed | Green | Blue
Lumens5,000 lm
CRI---
Zoom Min82°
Zoom Max82°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
3 Channel3 ch
4 Channel4 ch
6 Channel6 ch
9 Channel9 ch
30 Channel30 ch
33 Channel33 ch
36 Channel36 ch
60 Channel60 ch
