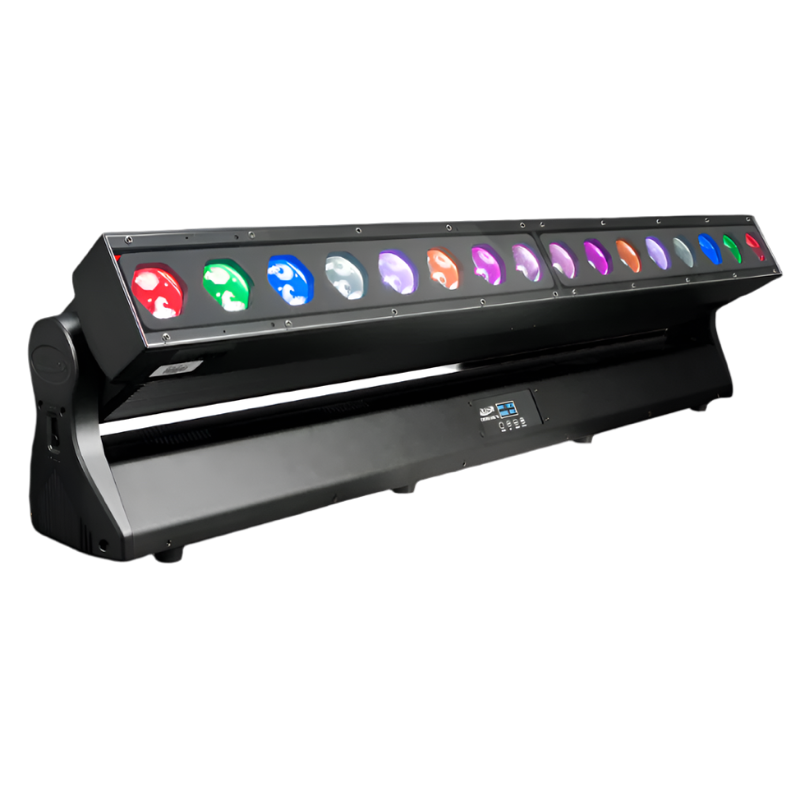

Chorus Line 16

Chorus Line 16

Elation

#2719
Short Name: ChrsL16

“CHORUS LINE 16™ is a 16 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K - 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 ethernet, and Locking Power Cable in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight21.3 kg
Length1068 mm
Width189 mm
Height291 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.739 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerCON

Optical & Wheels

SourceBar / Batten
EmittersRed | Green | Blue | White
Lumens5,700 lm
CRI---
Zoom Min4°
Zoom Max40°
Color Wheels1 [65]
Gobo Wheels---

Movement

Pan Range---
Tilt Range220°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic16 ch
Standard78 ch
Extended80 ch
