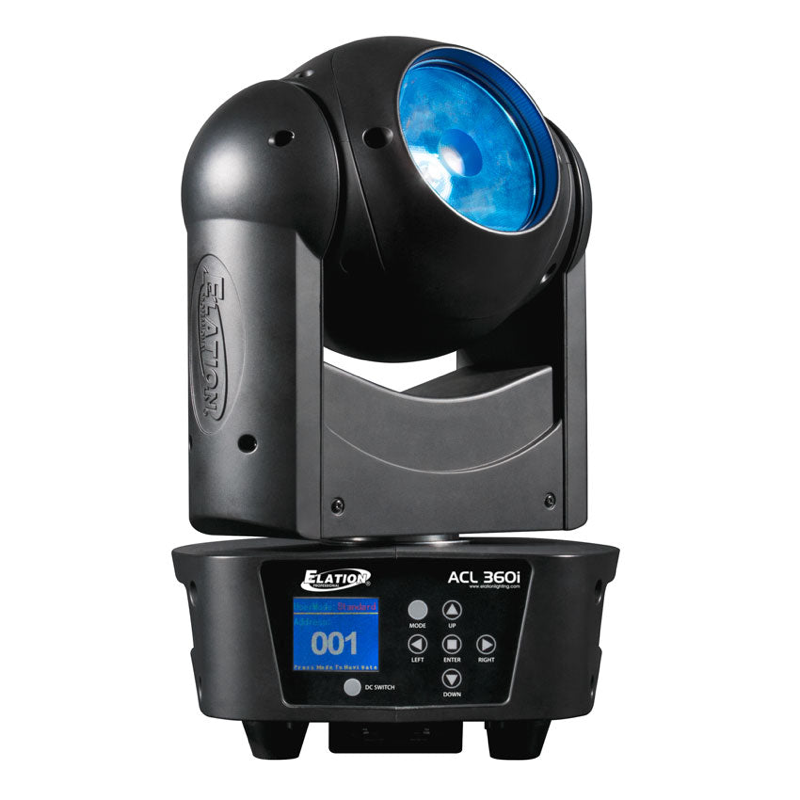

ACL 360i

ACL 360i

Elation

#2712
Short Name: ACL360i

“ACL 360i is a professional-grade lighting solution. Features 10 and 45 degree frost lens options (included), fast and precise16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, Locking Power Cable, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).”

Physical

Weight5.2 kg
Length222 mm
Width186 mm
Height330 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.110 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | RJ45 | PowerCON

Optical & Wheels

SourceBeam
Emitters---
Lumens1,500 lm
CRI---
Zoom Min4°
Zoom Max4°
Color Wheels---
Gobo Wheels---

Movement

Pan Range540°
Tilt Range540°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic16 ch
Standard18 ch
Extended20 ch
