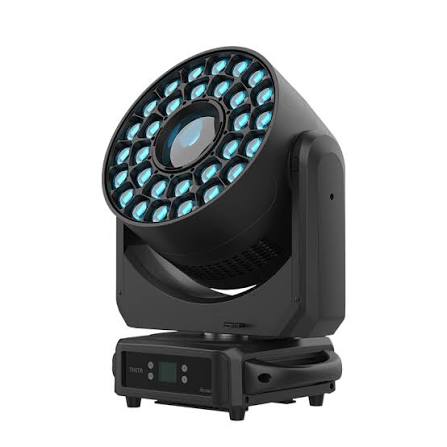

Theta (CM 1000 ZF)
ACME
#224Short Name: THETA
“Dual-source LED moving light combining a 200W cool-white LED beam section (13-color wheel, 9-gobo static wheel, dual combinable 8/16-facet prisms, frost) with a 30x40W RGBW LED wash section (4-51deg zoom, individual pixel control, CTO 2500-8000K).”
Physical
Weight34 kg
Length454 mm
Width341 mm
Height590 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.1600 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceWash / PAR
EmittersRGBW (19x 60W RGBW LED High-Power Moving Wash)
Lumens19,500 lm
CRI---
Zoom Min4°
Zoom Max51°
Color Wheels1 [13 colors, plus open]
Gobo Wheels1 [1 static (6 gobos + 3 effect gobos, plus open)]
Movement
Pan Range540°
Tilt Range215°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard19 ch
Basic27 ch
Extended29 ch
