Supernova (XA 2000 BSWF IP)
ACME
#208Short Name: SUPERNOVA

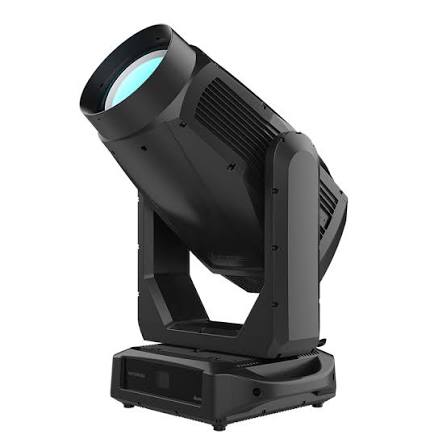

“IP66 outdoor flagship LED hybrid moving light, 1800W LED engine, 4-48deg zoom, HCRI Ra>=90 mode, CMY+CTO mixing, dual color wheels, dual rotating gobo wheels (6 gobos each), graphic animation wheel, dual combinable prisms (4-facet circular + 4-facet linear), 4-blade framing (+/-60deg), dual frost filters, motorized linear iris.”
Physical
Weight52.5 kg
Length465 mm
Width352 mm
Height890 mm
IP RatingIP66
Temp Low-10°C
Temp High40°C
Electrical
Power Consump.2265 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR3, XLR5, RJ45
Optical & Wheels
SourceProfile
EmittersCMY + Linear CTO + Color Wheel (6 colors + open)
Lumens65,000 lm
CRI70
Zoom Min4°
Zoom Max48°
Color Wheels2 [Wheel 1: 5 colors + open; Wheel 2: 3 colors + CRI, plus open]
Gobo Wheels2 [2 rotating gobo wheels, 6 gobos each, plus open]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard34 ch
Extended54 ch
