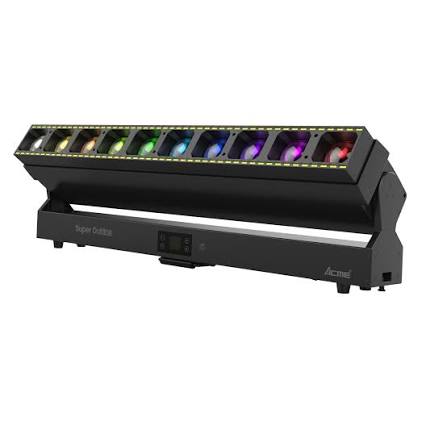

Super Dotline (TB 1060 INT12)
ACME
#207Short Name: SUPERDOTLINE
“Versatile LED bar combining a 10x60W RGBW beam/wash section with a 288-LED strip light section (96 CW + 96 WW + 96 RGB), motorized zoom (beam 2.8-31deg, field 5-46deg), 202deg motorized tilt, 12 individually controllable strip zones.”
Physical
Weight24 kg
Length1000 mm
Width170 mm
Height320 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.1155 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW (10x 60W RGBW LED Motorized Batten)
Lumens23,000 lm
CRI---
Zoom Min3.5°
Zoom Max38°
Color Wheels1 [33]
Gobo Wheels---
Movement
Pan Range---
Tilt Range202°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard17 ch
Extended53 ch
