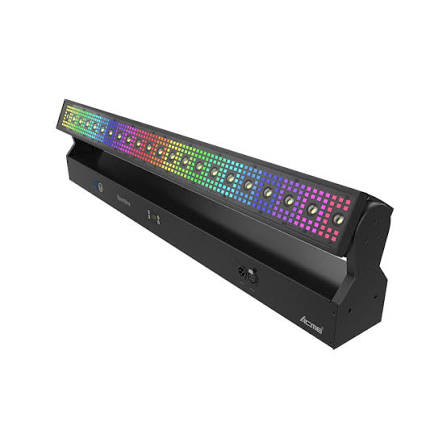

Sparkline (TB 2210)
ACME
#185Short Name: SPARKLINE
“ACME SPARKLINE (TB 2210)22*10W”
Physical
Weight13.5 kg
Length1000 mm
Width131 mm
Height213 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.450 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW (10x 40W RGBW LED Motorized Batten)
Lumens4,200 lm
CRI---
Zoom Min4°
Zoom Max40°
Color Wheels1 [32]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard12 ch
Basic14 ch
Extended52 ch
