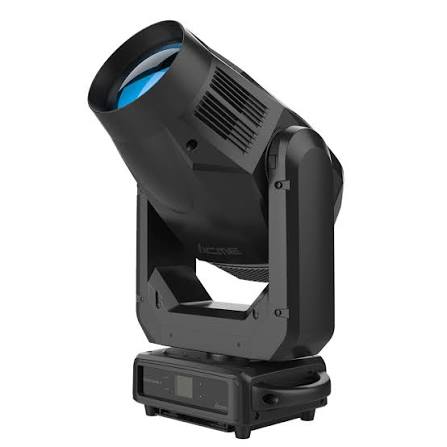

Solar Wind (XA 500 BSW)
ACME
#184Short Name: SOLARWIND
“500W white LED hybrid moving light (beam/spot/wash), 3-50deg zoom, CMY+CTO mixing, 7-color wheel, static gobo wheel (11 gobos + 2 beam reducers), rotating gobo wheel (7 gobos), animation wheel, dual combinable prisms and dual frost filters.”
Physical
Weight25.5 kg
Length364 mm
Width250 mm
Height658 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.665 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceHybrid BSW
EmittersCMY + Linear CTO + Color Wheel (8 colors + open)
Lumens19,500 lm
CRI70
Zoom Min3°
Zoom Max50°
Color Wheels1 [7 colors + high-CRI filter, plus open (8 slots)]
Gobo Wheels2 [1 static (11 gobos + 2 beam reducers), 1 rotating (7 gobos)]
Movement
Pan Range540°
Tilt Range260°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard24 ch
Extended31 ch
