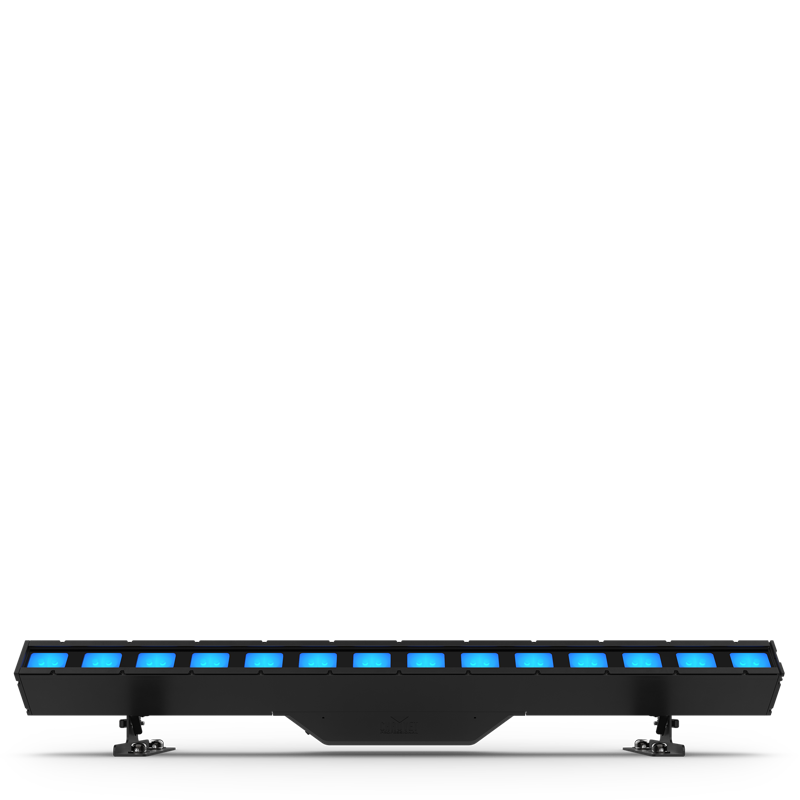

WELL BATTEN 14
Chauvet Professional
#1803Short Name: WBAT14
“WELL BATTEN 14 delivers 14 zones of control for pixel-mapping effects and a preprogrammed library of looks similar to our popular WELL STX”
Physical
Weight7.4 kg
Length200 mm
Width1001 mm
Height163 mm
IP RatingIP65
Temp Low-30°C
Temp High45°C
Electrical
Power Consump.344 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | SeetronicPowerkonIP65
Optical & Wheels
SourceBar / Batten
Emitters---
Lumens548 lm
CRI---
Zoom Min16°
Zoom Max16°
Color Wheels2 [18 | 1]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Arc1 3ch3 ch
HSV 3ch3 ch
Arc1D 4ch4 ch
Arc1S 5ch5 ch
Bloc 6ch6 ch
Tour 12ch12 ch
