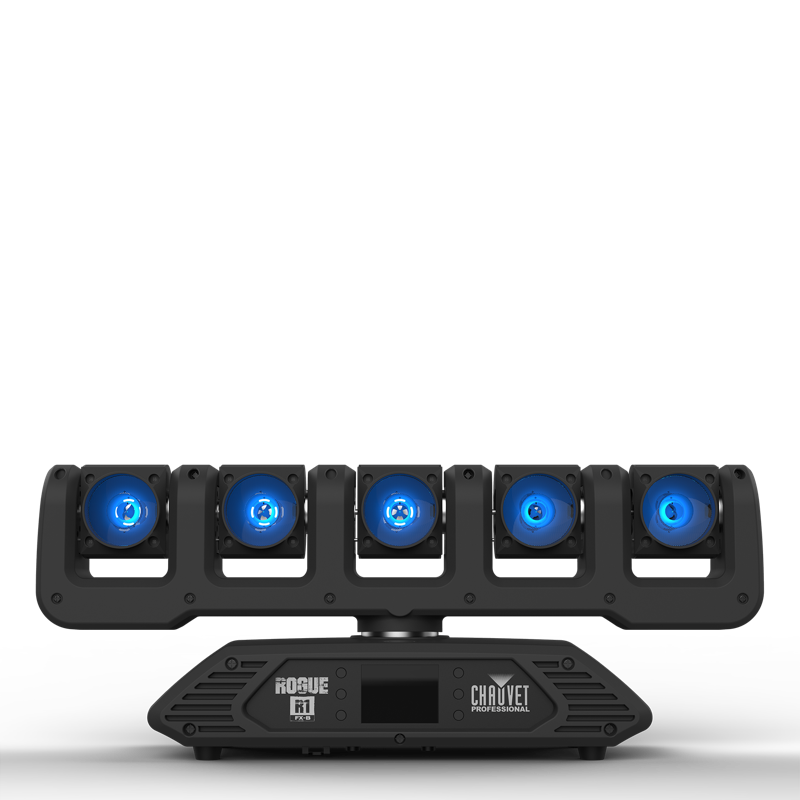

Rogue R1 FX-B

Rogue R1 FX-B

Chauvet Professional

#1782
Short Name: RogueR1FXB

“ROGUE R1 FX-B shakes things up, five times over. It orchestrates an infinite rotation of both pan and tilt for its 5 individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs. Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects. Control is achieved with DMX, Art-Net, sACN, or KlingNet. Features: - Fully featured RGBW LED yoke effect beam fixture with pixel mapping - 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades - Built in color and tilt macros for quick design possibilities - Continuous movement of pan and tilt functions - Individual control of all five heads for movement and output - Quiet operation for a wide range of installation situations - DMX, WDMX, sACN, Art-Net, and Kling-Net control for full flexibility - 7° beam angle to create crisp and defined areal beam effects”

Physical

Weight11 kg
Length179 mm
Width640 mm
Height247 mm
IP RatingIP20
Temp Low0°C
Temp High45°C

Electrical

Power Consump.167 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR3 | XLR5 | NeutrikpowerCON

Optical & Wheels

SourceMulti-Beam
EmittersRed | Green | Blue | White
Lumens5,020 lm
CRI---
Zoom Min6.2°
Zoom Max6.2°
Color Wheels1 [15]
Gobo Wheels---

Movement

Pan Range540°
Tilt Range540°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic 18ch18 ch
Standard 25ch25 ch
Advanced 47ch47 ch
Tour 52ch52 ch
