Ovation Reve F-3 IP

Ovation Reve F-3 IP

Chauvet Professional

#1767
Short Name: OvaReveF3IP

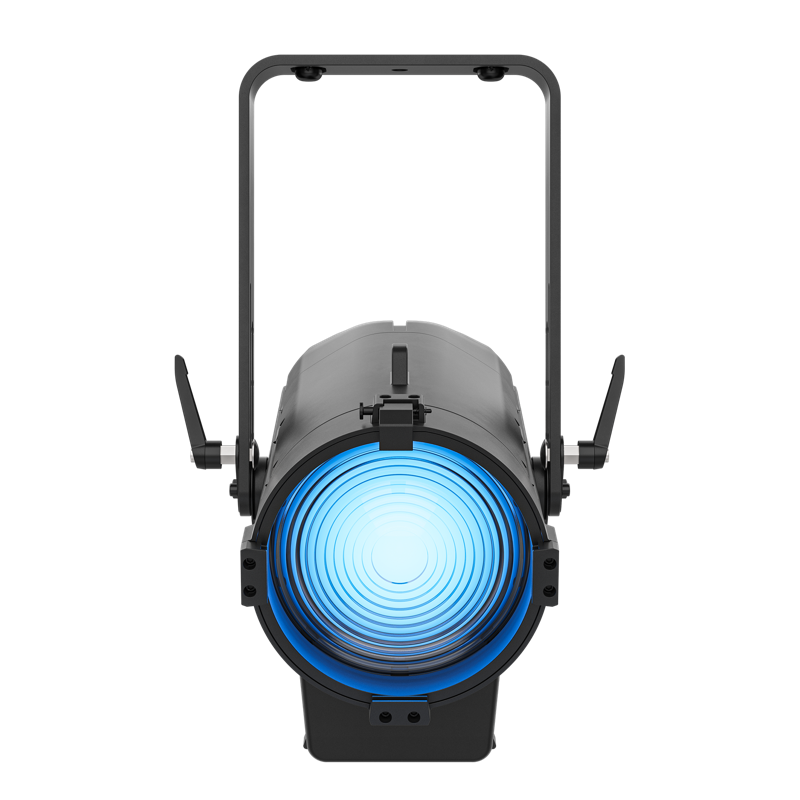

“Ovation Reve F-3 IP is an outdoor-rated motorized fresnel incorporating our full spectrum (RGBAM) R?ve light engine. With easy on-board control dials and quiet operation, Reve F-3 IP represents a welcome solution for applications and markets in need of soft controllable washes. Ready to go anywhere, rain or shine, its innovative adjustable yoke also allows it to be mounted anywhere, even in low clearance areas. Featuring an optical system designed to answer the call for longer throws with an extended zoom range that can narrow from 60 degrees all the way down to 10 degrees in order to achieve impressive reach. A versatile lighting instrument at home in theaters, houses of worship, on TV and Film sets, as well as the rental and production world. Flawlessly smooth dimming, +/- green adjustment, linear CCT and adjustable Pulse Width Modulation ensure performance that looks as good on camera as it does live.”

Physical

Weight13.8 kg
Length342 mm
Width407 mm
Height508 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.526 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | SeetronicPowerkonIP65

Optical & Wheels

SourceFresnel
EmittersRed | Green | Blue | Amber | Mint | 3200K | 4000K | 5600K | Full On
Lumens13,374 lm
CRI96
Zoom Min10.6°
Zoom Max99.5°
Color Wheels1 [32]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1ch1 ch
HSV 4ch4 ch
5ch5 ch
6ch6 ch
8ch8 ch
12ch12 ch
14ch14 ch
18ch18 ch
