Ovation P-56FC

Ovation P-56FC

Chauvet Professional

#1762
Short Name: OvationP56FC

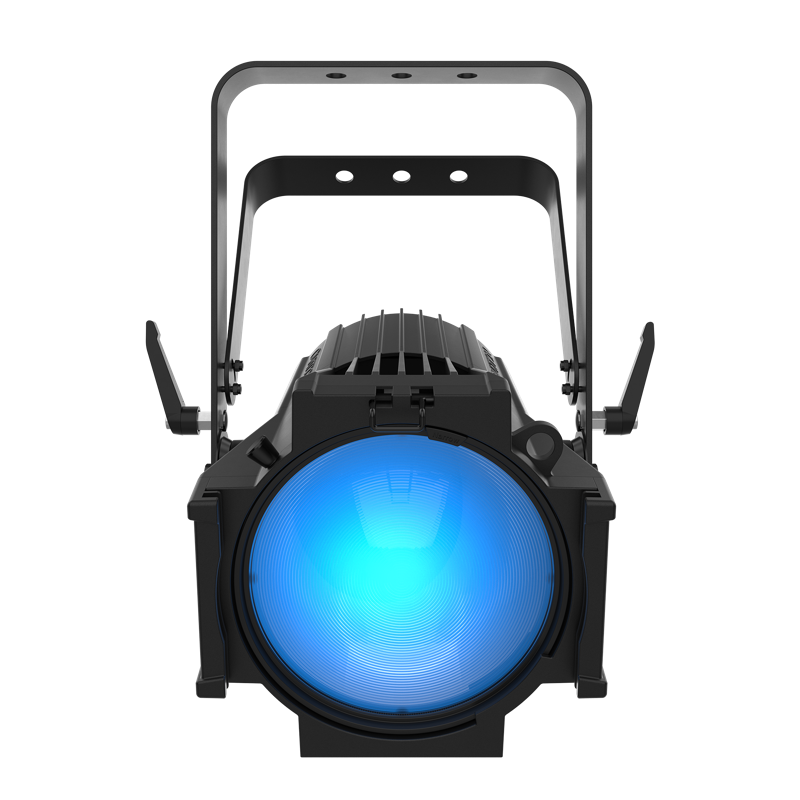

“Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI.The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.”

Physical

Weight5.6 kg
Length326 mm
Width317 mm
Height363 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.158 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR3 | XLR5 | NeutrikpowerCON

Optical & Wheels

SourcePAR
EmittersRed | Green | Blue | Amber | Lime
Lumens5,500 lm
CRI87.9
Zoom Min24°
Zoom Max82°
Color Wheels1 [32]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1ch1 ch
2ch2 ch
HSV 3ch3 ch
3ch3 ch
4ch4 ch
5ch5 ch
7ch7 ch
8ch8 ch
10ch10 ch
11ch11 ch
12ch12 ch
13ch13 ch
14ch14 ch
15ch15 ch
16ch16 ch
